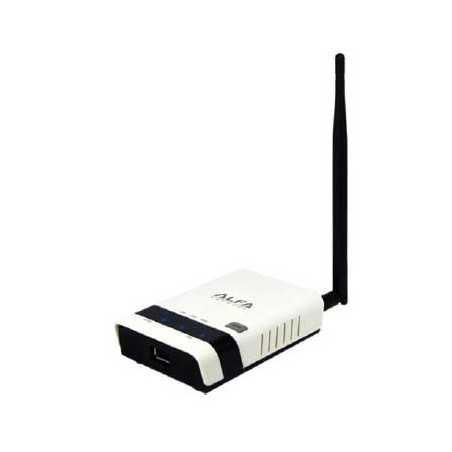

R36 Alfa Network 3G Modem Router 802.11N AP

R36 Alfa Network 150Mbps

3G Modem/Router
e
Alfa AWUS036H - AWUS036NH - AWUS036NHR Extender
(NON INCLUSE!)

L'R36 è un modem router 3G utilizzabile per estendere a più PC (in Wi-Fi) la connessione di una singola chiavetta UMTS.
Occorre semplicemente collegare alla porta USB una chiavetta compatibile per avere connessione wi-fi diffusa in ambienti indoor.

Funziona anche da Expander di rete in accoppiamento con le AWUS036H/NH/NHR (aumenta la copertura wireless):

- collega la tua awus036h alla porta USB
- dal software di gestione connettiti alla rete wi-fi di tuo interesse

La rete verrà ripetuta (anche con altro nome e diversa password di rete) e sarà disponibile connettività wireless per tutti i tuoi PC.
Supporta inoltre: WDS, Doppio SSIDs, Static Routing, QoS.
Max Power: 500mW

Caratteristiche Tecniche:

Model	R36
Standards	Wired: IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11, IEEE 802.11g, IEEE 802.11n
Physical	1 x 10/100Mbps WAN Port 1 x 10/100Mbps LAN Port 1 x detachable external 5dBi antenna 1 x Reset button 1 x WPS Security Key 1 x USB Port
Management	Web-base management interface Remote management SNTP time synchronize
Output Power	802.11b: 27dBm ± 2dBm 802.11g: 25dBm ± 2dBm 802.11n: 25dBm ± 2dBm
Sensitivity	11n	20MHz	MCS7: -71 MCS0: -90
		40MHz	MCS7: -69 MCS0: -88
	11g	54Mbps: -75 6Mbps: -92
	11b	11Mbps: -90 1Mbps: -95
Data Rate	802.11n ( 40MHz ): up to 150Mbps 802.11n ( 20MHz ): up to 72Mbps 802.11g: 54,48,36,24,18,12,9,6Mbps 802.11b: 11,5.5,2,1Mbps
Wireless Mode	WISP Bridge Router
Operating Frequency	FCC: 2412~2462MHz (Ch1~Ch11) ETSI: 2412~2472MHz (Ch1~Ch13) Japan: 2412~2484MHz (Ch1~Ch14)
Security	Access Control Policy MAC filter DMZ Host SSID Broadcast disable Wireless MAC address Filtering WEP Encryption WPA-/W PA2-PSK (Pre-shared Key) WPA/W PA2 Enterprise mode (802.1x) WiFi Protected Setup (WPS)
Router	Shares high speed cable/xDSL Internet connection Static Routing VPN Pass through NAT 802.11e WMM IGMP Proxy Dual SSIDs
Temperature	Operating: 0ºC to 40ºC (32ºF to 104ºF) Storage: -20ºC to 60ºC (-4ºF to 140ºF)
Humidity	Operating :10% to 85% Non-Condensing Storage: 5% to 90% Non-Condensing
Dimensions	93 x 70 x 26mm
Weight	74g
Power Input	12V/1A
3G Functions	3G budget Control with Email warning ( Support Pre-pay and Post-pay ) Dual Wan backup Remote Access Control by 3G WAN
Compatible 3G USB Modem	ALFA Fly3G ZTE MF622 ZTE MF626 ZTE MF627 ZTE MF628 ZTE MG880 ZTE AC8710v2 ZTE AC2726 ZTE AC8710v1 Huawei E180 Huawei E219 Huawei E160E Huawei E220 Huawei E219 Huawei E169 Huawei E169u Huawei D02 Huawei D21 Huawei D22 Huawei D23 Huawei D31 Huawei ET128 Bandluxe C170 DoCoMo A2502 SoftBank C01LC Sony Erission MD300 ASUA T500 Sierra 598U (EVDO) C-MOTECH U300 (EVDO)
