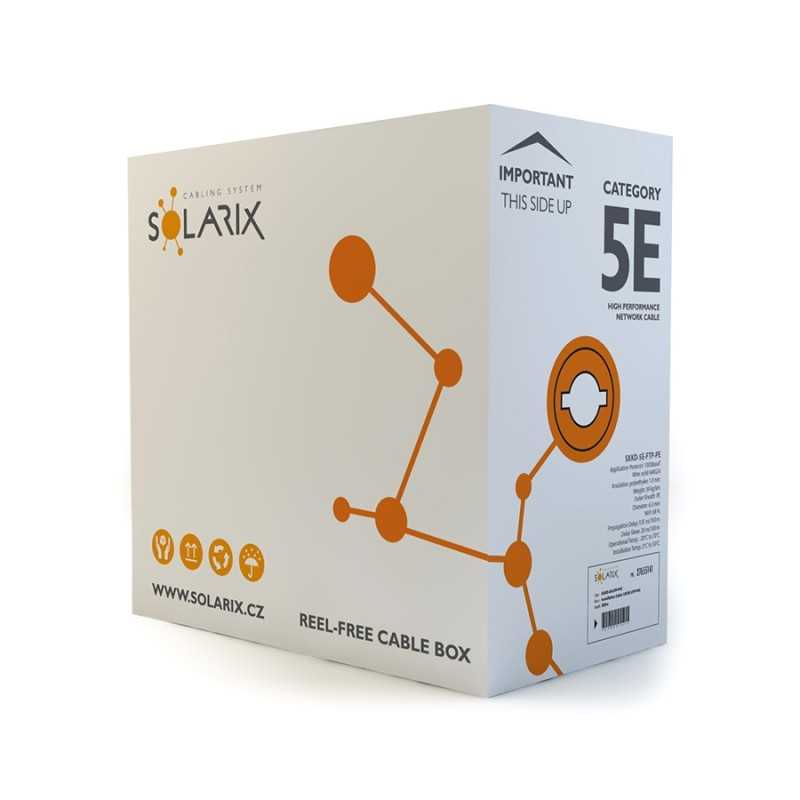

FTP cat 5e outdoor shielded network cable up to 1Gbps in pure copper 305m
€242.20
Tax Included
Delivery in 4/6 days
Shielded network cable for outdoor installations
Pure copper supports up to 1Gbps.
The coil is 305m long
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
Pure copper outdoor shielded network cable
For all applications where the laying of the LAN network cable in an external environment is required and transfer speeds up to 1Gbps.
| CPR | Fire reaction class Fca |
| Standards | ISO/IEC 11801, IEC 61156-5, EN 50173-1, EN 50173-2, EN 50288-2-1/EN 50288-3-1 |
| Type of conductor and dimensions | Copper 0.50 mm ± 0.005 mm |
| Isolation | HDPE |
| Diameter of conductor with insulation | 1.0mm |
| Cable diameter | 6.2mm |
| Weight | 40kg/km |
| Color | Black RAL 9005 |
| nvp | 68% |
| Propagation delay | 535ns/100m |
| Skew delay | ≤ 45ns/100m |
| Storage temperatures | -20 to +60 °C |
| Operating temperatures | -20 to +60 °C |
| Installation temperatures | 0 to +50 °C |
| Transmission characteristics (at 20 °C) | |||||||
| f (MHz) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (ns/100m) | Prop. delay (ns/100m) | ACR-F (dB/100m) | PSACR-F (dB/100m) | Return loss (dB) |
|---|---|---|---|---|---|---|---|
| 1 | 1.94 | 83.24 | 82.43 | 534.95 | 76.30 | 72.75 | 32.03 |
| 4 | 3.89 | 71.20 | 69.89 | 516.29 | 64.02 | 60.40 | 33.38 |
| 8 | 5.52 | 68.88 | 66.19 | 510.89 | 58.02 | 53.00 | 35.09 |
| 10 | 6.18 | 69.88 | 66.88 | 509.48 | 55.08 | 51.28 | 36.05 |
| 16 | 7.83 | 66.11 | 63.11 | 507.05 | 52.09 | 49.08 | 43.10 |
| 20 | 8.77 | 66.90 | 63.82 | 506.03 | 49.66 | 46.58 | 41.27 |
| 25 | 9.81 | 65.40 | 60.58 | 505.18 | 43.65 | 41.21 | 40.07 |
| 31.25 | 11.00 | 57.77 | 55.07 | 504.40 | 45.14 | 52.54 | 39.08 |
| 62.5 | 15.67 | 53.31 | 51.59 | 502.45 | 38.30 | 35.30 | 34.07 |
| 100 | 19.86 | 52.37 | 50.12 | 501.44 | 34.68 | 31.91 | 33.31 |
1573
1 Item
Data sheet
- Type of installation
- Outdoor
- Shielding
- F/UTP - Shielded
- Materiale del conduttore
- Pure copper
