Bullet AC dual band 2.4/5GHz B-DB-AC 300Mbps Ubiquiti

Bullet AC dual band 2.4/5GHz

B-DB-AC 300Mbps Ubiquitous

Ubiquiti Networks designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet™ AC anywhere in the world as it allows for a high degree of flexibility in configuring channel bandwidths.

The Bullet AC eliminates the need for RF cables and does not require an antenna or special tools for installation. There are no connection problems between the radio board and the motherboard, no RF cable quality problems, no mechanical stability problems, and no mounting requirements. With the Bullet AC, operators can simply plug in and start up the device.

airOS® 8 is the revolutionary operating system for Ubiquiti airMAX ac products.

Great wireless features:

• Mixed mode airmax PtMP Access Point
• AirMAX ac protocol support
• Long range Point-to-Point (PtP) link mode
• Channel width selectable
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40MHz
• Automatic channel selection
• Transmission Power Control: automatic / manual
• Automatic distance selection (ACK timing)
• Improved WPA2 security

Usability improvements

• AirMagic® channel selection tool
• Dynamic configuration changes
• Instant input validation
• HTML5 technology
• Optimization for mobile devices
• Detailed device statistics
• Comprehensive menu of diagnostic tools, including RF diagnostics and airView® spectrum analyzer

Advanced RF analysis

airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analysis engine.

An independent processor on the PCBA powers a second dedicated radio, which continuously scans the full 5GHz spectrum and every received symbol to give you the most advanced RF analysis in the industry.
Spectrum analysis and RF performance monitoring data is displayed on Dashboard and airView Spectrum Analyzer.

Real-time reports

The following RF information is present on the main screen of airOS8:

- RF Persistent Error Vector Magnitude (EVM), constellation diagrams
- Signal, noise and interference diagramsSNI)
- Noise diagram
- Current speed/prediction diagrams

Spectral analysis

airView helps you identify sources of noise and improve the efficiency of your networks by minimizing interference.
The software performs the following functions:

- Constantly monitor ambient noise
- Collect data in real time
- Helps in optimal channel selection and design of wireless networks

airView works in the background without the need to disable the wireless link, in order to ensure continuity of service.

There are three spectral views in airView, each representing different data:

- Waterfall (waterfall)
- Waveform (waveform)
- Ambient Noise Level

airView offers powerful spectrum analyzer capabilities, eliminating the need to rent or purchase additional equipment to conduct field surveys.

UNMS APP

The Bullet AC integrates a separate Wi-Fi radio for quick and easy setup with your mobile device.

Access to airOS via Wi-fi

The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to set up, configure and manage your device and offers various configuration options after you connect or log in.

airMAX AC technology

Unlike standard Wi-Fi protocols, Ubiquiti uses the airMAX AC Time Division Multiple Access (TDMA) protocol which allows each client to send and receive packets using a pre-designated time slot controlled by an intelligent AP controller.
The time slot method eliminates collisions at hidden nodes and maximizes effectiveness.
It also provides improvements in latency, throughput, and system scalability.

Intelligent QoS
Prioritize voice and video for uninterrupted streaming.

Scalability
High capacity and scalability

Long distances
Carrier-class high-speed link capability

Superior performance
Next generation airMAX ac technology augments the benefits of our proprietary TDMA protocol.

Ubiquiti's airMAX engine with custom IC greatly improves TDMA latency and network scalability. Custom silicon provides hardware acceleration capabilities to the airMAX controller to support the high data rate and dense modulation used in the airMAX ac technology.

Throughput Breakthrough

airMAX ac supports high data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in the airMAX.

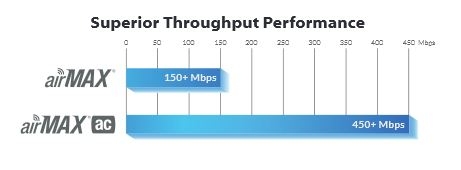

With the use of proprietary airMAX ac technology, airMAX ac products support up to 500+ Mbps (80 MHz maximum channel width) real TCP/IP throughput - up to triple the throughput of standard airMAX products.

Hardware overview

The Bullet AC is a fully integrated radio that offers real TCP/IP throughput up to 300+ Mbps.

Dual band frequency
The Bullet AC covers both the 2.4 and 5GHz radio bands, covering a wide range of frequencies that work well for both short and long distance links.

Output power
The B-DB-AC offers up to 22 dBm of output power.

Passive Power over Ethernet (PoE)
24V passive PoE functionality included. Both power and data are transferred over a single Ethernet cable to the Bullet AC. Use a PoE adapter (not included) or an optional PoE switch.

Weather resistant design
The Bullet AC's coating can withstand the toughest outdoor conditions.

Plug and Play integration
No special tools or antennas are required to install the Bullet AC. Just plug it in and start.

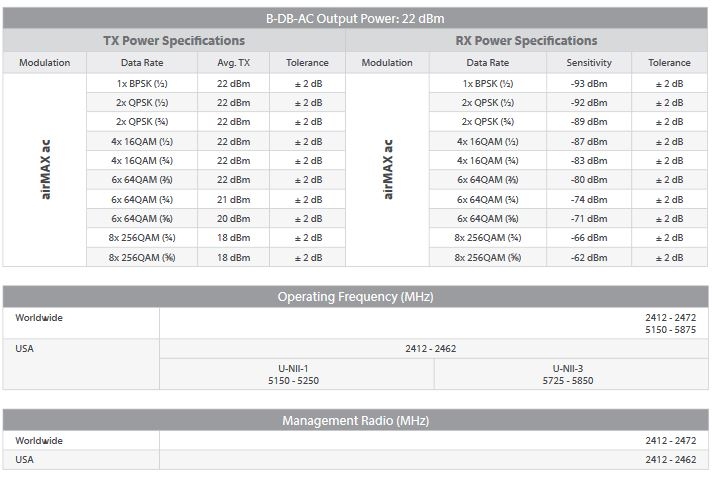

Technical features
