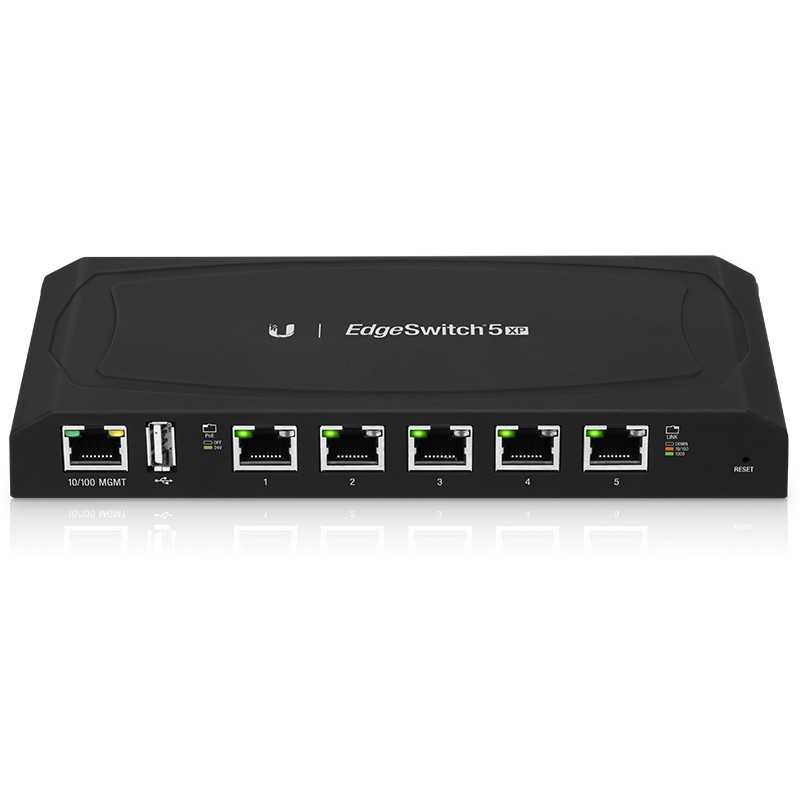

EdgeSwitch 5 Gigabit PoE ports 24V ES-5XP Ubiquiti
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
EdgeSwitch 5 PoE ports 24V ES-5XP Ubiquiti
The EdgeSwitch XP PoE delivers reliable and fast 10/100/1000 Mbps connectivity to connected Ubiquiti devices and other devices that support passive PoE.
To connect PoE devices, simply enable PoE in the EdgeSwitch XP configuration interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.
EdgeSwitch 5XP is a cost-effective 5-port Gigabit switch with 24V PoE support.
Simplify your employment
EdgeSwitch XP allows network designers to create cleaner, less cluttered installations. EdgeSwitch XP implementations increase efficiency and greatly reduce potential points of failure, resulting in faster installations and less maintenance.
Intuitive configuration interface
EdgeSwitch XP offers an intuitive configuration interface designed for efficient setup and control. Accessible via a secure management port and web browser, the EdgeSwitch XP configuration interface offers intuitive management with a virtual view of ports, showing physical connectivity, speed and PoE status.
Advanced specifications
EdgeSwitch XP has a variety of advanced features, including:
• Door monitoring
• System connection and management services
• Configuring Virtual Local Area Network (VLAN)
• Spanning Tree Protocol (STP) / Rapid Spanning Tree Protocol (RSTP)
• Jumbo Frame support
• Ping Watchdog
• Configurable alerts
Technical features
| Dimensions | 197x87.5x27.3mm |
| Weight | 250g |
| Diet | 24V DC, 2.5A power supply included |
| Maximum power consumption | 60W |
| PoE output voltage range | 22-24V DC |
| Max PoE wattage per port | 11.5W |
| ESD ratings | 24kV Air / 24kV Contact |
| PoE method | Passive |
| Key | Reset |
| USB port | 2.0 type A (reserved for future use) |
| Processor | MIPS 24K, 400MHz |
| memory system | 64MB |
| Storage code | 8MB |
| Certifications | CE, FCC, IC |
| Wall mounting | Yup |
| Operating temperature | -25°C to 55°C (-13 to 131°F) |
| Operating humidity | 90% Non Condensing |
| Configurable PoE per port | |
| Port management | N/A |
| Data ports | Off/24V |
| Door LEDs | |
| Port management | Power /Link/Activity |
| Data ports | PoE, Speed/Link/Activity |
| Network interface | |
| Port management | 1 10/100 Ethernet port |
| Data ports | 5 10/100/1000 Ethernet ports |
