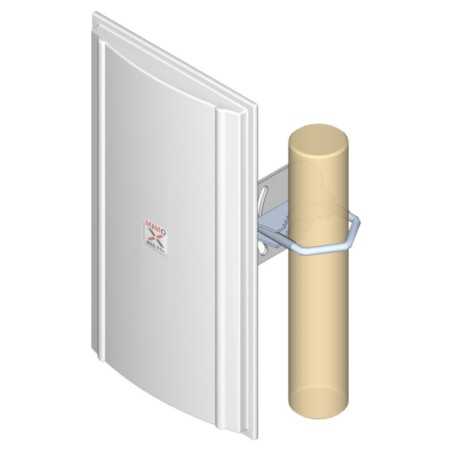

19dBi 5.0-5.9GHz dual polarization MIMO panel antenna
€39.67
Tax Included
H/V 19dBi 5.0-5.9GHz dual polarization MIMO panel antenna
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
H/V dual polarization MIMO panel antenna
19dBi Gain - Frequencies 5.0-5.9GHz
Directional antenna for base station and client in MIMO technology, designed to work with radio equipment operating in the 802.11n standard using MIMO technology. The antenna has two connectors, is relatively light in weight, and the compact design saves space for mast installations.
Technical features
| Electric | |
| Frequency (min) | 5 000MHz |
| Frequency (max) | 5 900MHz |
| I earn | a.19dBi b.19dBi |
| VSWR (max) | 2.00:1 |
| Polarization | Horizontal and vertical |
| Beamwidth (-3dB) - Horizontal | to. 16th |
| Beamwidth (-3dB) - Vertical | to. 16th |
| FBR (duplex ratio) | >30dB |
| XPD (Cross Polarization Discrimination) | >27dB |
| Port-to-port isolation | >37dB |
| DC ground | Yup |
| Impedance | 50Ω |
| Mechanics | |
| connectors | No female |
| Pole diameter for mounting | ř 38…51mm |
| Dimensions (excluding bracket) | 191x340x25mm |
| Weight (including bracket) | 0.92kg |
| Environmental | |
| Environment | External |
| Wind load | 130km/h |
| IP protection | IP64 |
0888
Data sheet
- Type of Radiation
- Directional
Specific References
