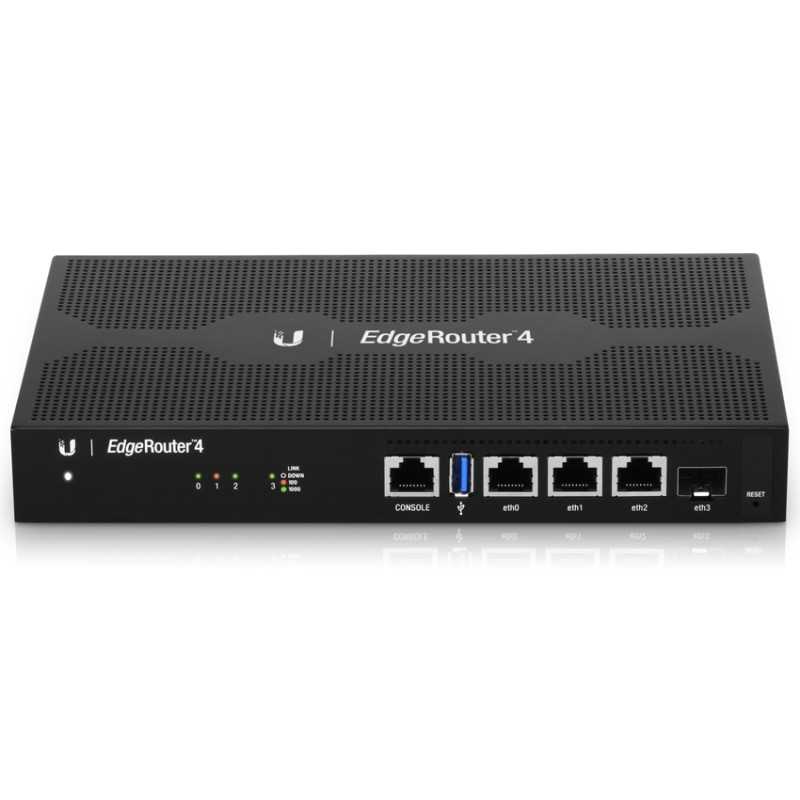

EdgeRouter 4 Gigabit ports 1 SFP port ER-4 Ubiquiti

EdgeRouter 4 Gigabit ports + 1 SFP port

ER-4 Ubiquitous

• (3) Gigabit RJ45 routing ports
• (1) Gigabit SFP port
• 3.4 million packets per second for 64 bytes per packet
• 4 Gbps for 128 byte packets or larger
• Silent operation without fan
• Compact and rugged metal case
• Mountable in 1U rack cabinet

Advanced routing technology for the masses

Ubiquiti Networks introduces EdgeRouter™ 4, the next generation of routers for the EdgeMAX® platform.
EdgeRouters combine carrier-class reliability with enterprise-level features in a compact, affordable unit. EdgeRouter 4 offers Gigabit Ethernet ports and an SFP port for a fiber link. EdgeRouter 4 is capable of routing up to 3.4 million packets per second and has a line speed of 4 Gbps.
Powered by a proprietary and intuitive graphical interface, EdgeOS®, EdgeRouter can be easily configured for the routing, security, and management functions needed to run your network efficiently. For advanced network professionals, a built-in CLI is available for quick and direct access using familiar commands. In addition, the UNMS app offers greater convenience and flexibility, which makes it possible to remotely manage the EdgeRouter from your mobile device.

Network manager

DHCP servers
Configure multiple DHCP servers to assign IP ranges in different subnets on different interfaces. Easily control dynamic and static IP addressing for your network devices.
Monitoring tools
Track network activities and devices easily using tools like Ping, Trace, Discover, Packet Capture and Log Monitor.

Keep your network safe

Firewall Policies
Arrange the applied rules in the specified order.
Firewall groups
Apply policies to groups filtered by IP address, network address, or port number.
NAT rules
The EdgeRouter modifies the routing of packets based on your own source and destination NAT rules.

Direct traffic flow

Interfaces
Each port functions as an independent interface.
You can also configure virtual local area network (VLAN) interfaces for network segmentation.
Routing
Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.

Software

Intuitive network interface
The EdgeRouter provides a graphical user interface designed for convenient setup and control. Accessible via a network port and web browser, the interface provides intuitive management with a virtual view of ports, displaying physical connectivity, speed and status.
The Dashboard screen displays detailed statistics: IP information, MTU, transmission and reception speeds, and status for each physical and virtual interface.

Specifications

EdgeOS is a sophisticated operating system packed with advanced features, including:
• VLAN interfaces for network segmentation
• Static routing and routing protocol support: OSPF, RIP, BGP, and MPLS
• Firewall policies and NAT rules
• Application identification with Deep Packet Inspection (DPI)
• DHCP Services
• Quality of Service (QoS)
• Network monitoring and administration tools
• Administrator and operator accounts
• Full IPv6 support

Configuration via CLI

The CLI provides fast and flexible command-line configuration and has the following features:
• For expert users, configuration and monitoring of all advanced functions
• Direct access to standard Linux tools and shell commands
• Access to the CLI through:
• Serial console port
SSH
• Telnet
• Graphical user interface

Flexible management

In addition to EdgeOS software, EdgeRouter offers the following options for convenient management.

Ubiquiti network management system
The EdgeRouter 4 is supported and managed by the Ubiquiti® network management system. UNMS™ is a full featured management controller with an easy to use graphical user interface. You can use a single control plane to manage EdgeMAX devices registered across multiple networks and sites.

UNMS app
The UNMS app allows you to manage EdgeRouter using your mobile device. The app can be downloaded from the App Store (iOS) or Google Play™ (Android).
Once the UNMS app is installed on your mobile device, simply connect to a wireless network that has access to the EdgeRouter, detect the EdgeRouter and enter the configuration interface. You can view and configure various settings, such as interface information, throughput per port, system settings, and more.

Technical features
