Antenna 23dBi slant for airFiber 5X AF-5G23-S45 Ubiquiti

Antenna 23dBi slant for airFiber 5X AF-5G23-S45 Ubiquiti

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna uses the 5 GHz frequency band.

Powerful Performance

The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a
neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.

Carrier-Class Construction

Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plugh and play integration

airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Hardware overview

• Secure Pole-Mounting Maintains the position of the dish during harsh outdoor conditions.
• Low-Profile Form Factor of the AF-5G23-S45 Reduces wind-loading.
• Protective Shroud Protects the cables and connectors from the elements.
• Integrated Radome of the AF-5G23-S45 Shields the radio from the environment.

Avanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.

The near-field plot of the AF-5G23-S45 is displayed in watts and uses a linear scale. The strength of the electromagnetic field is color-coded:
• Red: Highest strength
• Green: Medium strength
• Indigo: Lowest strength

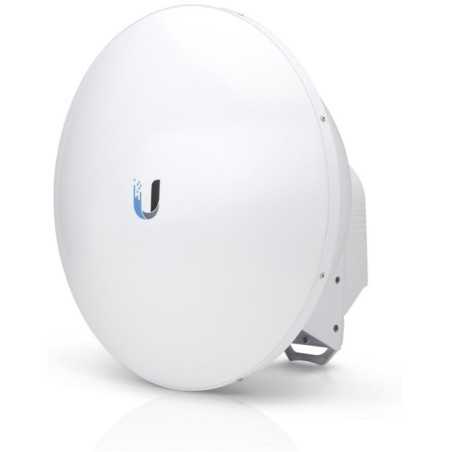

Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23 dBi of gain and features the following advantages:
• Low sidelobes reduce interference from other transmitters in the area.
• High isolation enhances performance for co-location in tower-mounted installations.
• The low-profile design with integrated radome reduces wind-loading.

Specifications

*Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)
