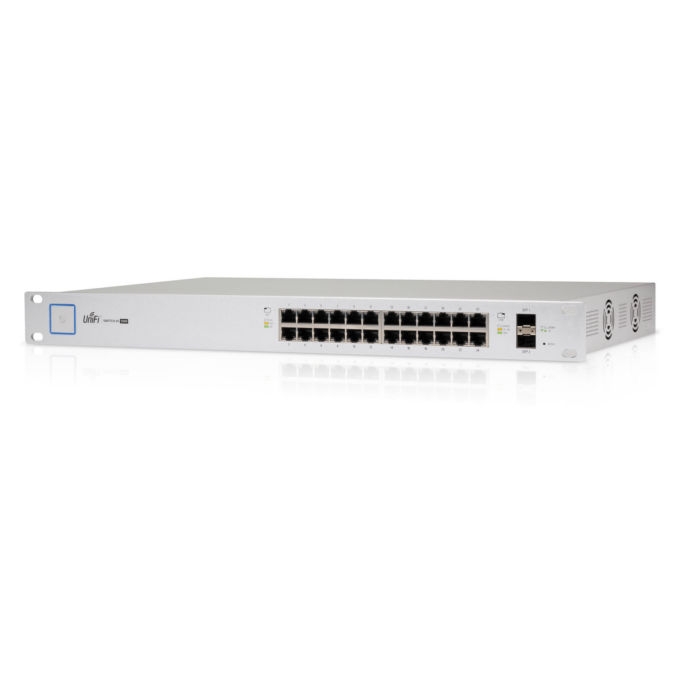

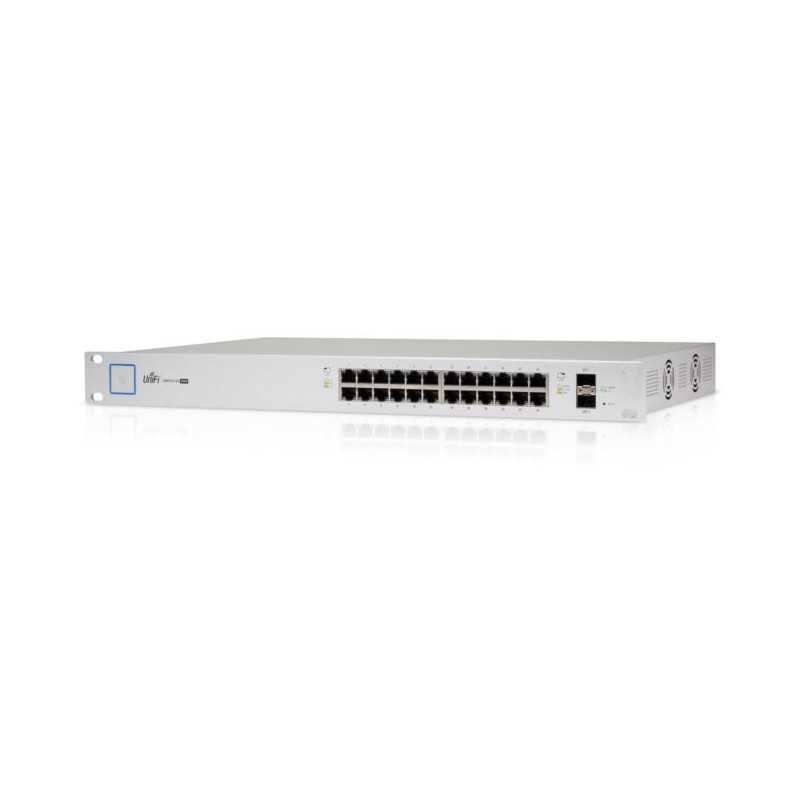

UniFi Switch PoE 24 Ports US-24-250W Ubiquiti

UniFi Switch PoE 24 Ports US-24-250W Ubiquiti

Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks

Switching performance

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE+Flexibility

The UniFi Switch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at PoE to simplify your infrastructure.

For your convenience, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE – no need to manually enable or configure any settings.

Fiber connectivity

The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.

Unifi controller

Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download the controller from www.ubnt.comat no additional charge – there is no separate software, licensing, or support fee.

Muti-site management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own unique network monitoring, configuration, maps, statistics, and admin accounts.

Switch configuration

You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• PoE setting per port
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control configuration
• Network settings
• Storm control setting per port
• Spanning tree configuration

Switch Port Status

You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• PoE status
• Network/VLAN setting

Software features

The UnIFi Controller software offers the following features:
• Auto-generated topology view
• Centralized statistics in controller
• RSTP and Spanning Tree Protocol
• SNMP
• Storm control (independent broadcast, multicast, and unknown destination unicast limits per port)
• 802.3x flow control
• 9216-byte jumbo frame support
• VLAN support
• Port mirroring
• Port aggregation (LACP)
• Port isolation (protected port) for port-level isolation
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN

Statistics

The Switch Statistics screen displays a graphical overview of all LAN throughput for each port on the selected switch. Under the same pane of glass, it also shows LAN, WLAN, and Internet traffic, including the breakdown of protocols being used (requires a UniFi Security Gateway).

Topology View

The Topology screen displays a topology diagram of your UniFi system. You can filter the type of information displayed, such as client devices, labels, and link settings.

Main features:

• (24) Gigabit RJ45 Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Maximum Power Consumption: 250W
• Supports PoE+ IEEE 802.3at/af
• Rack-Mountable

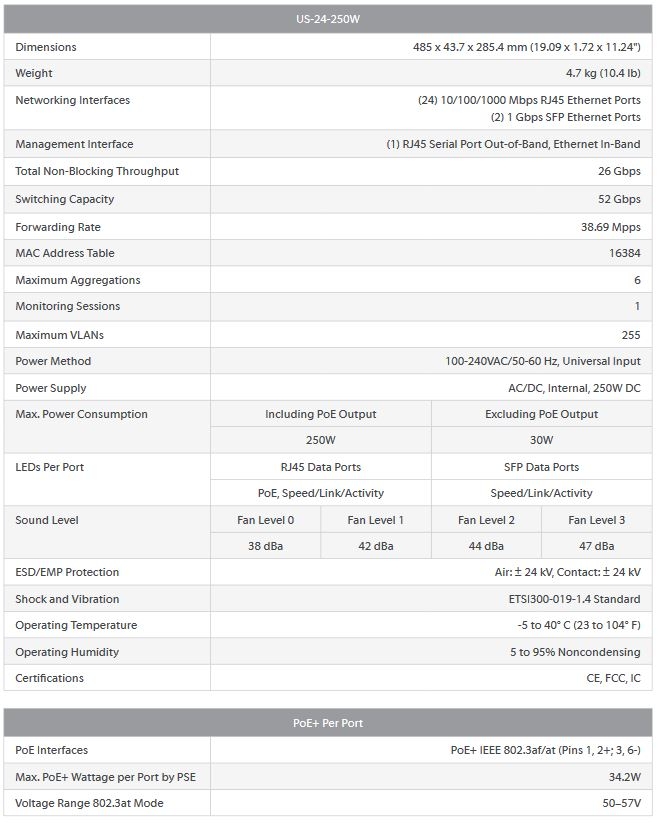

Specifications:
