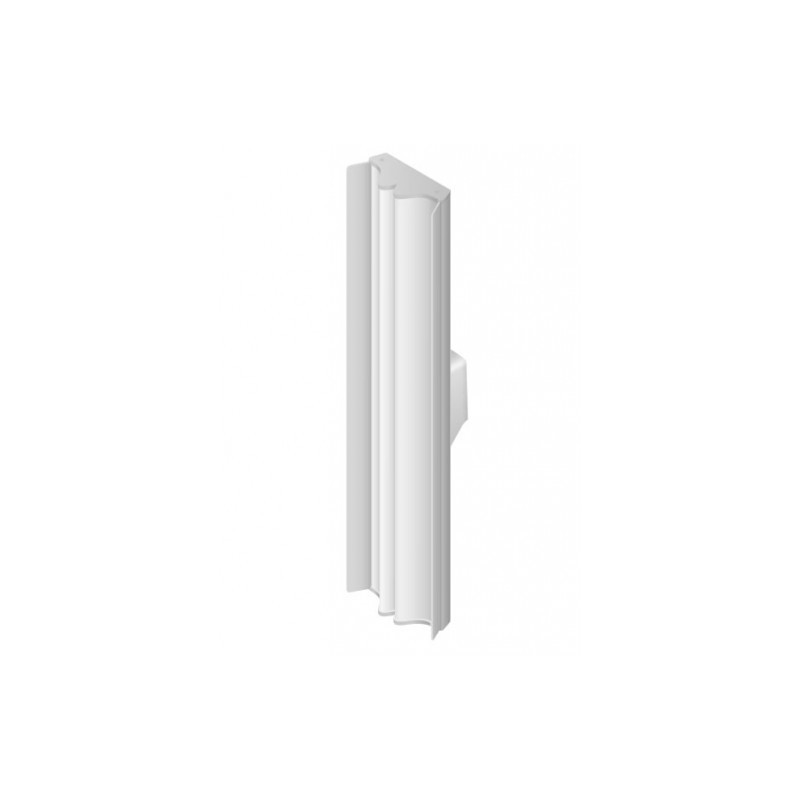

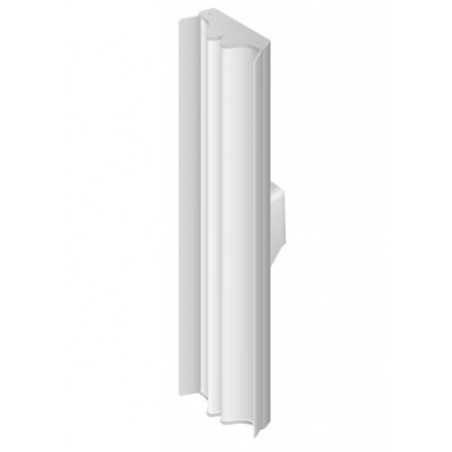

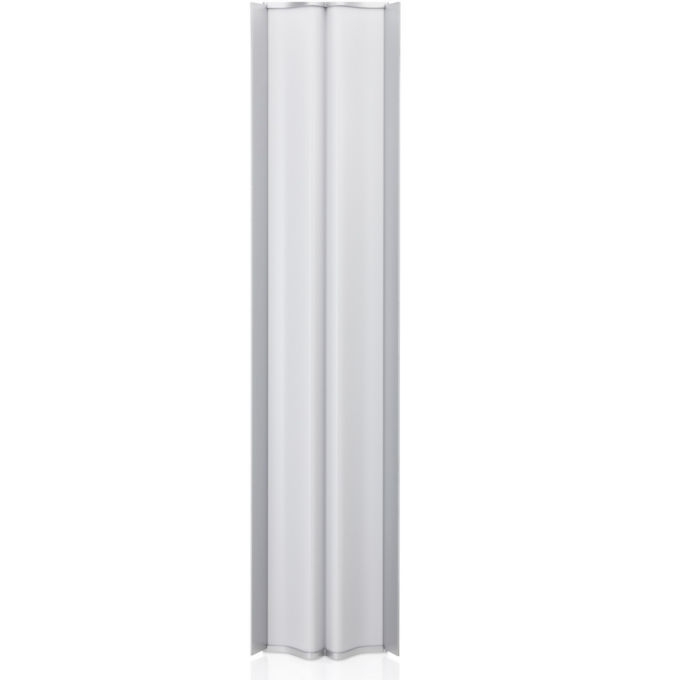

Sector Antenna AM-5AC21-60 AirMAX ac Ubiquiti

Sector antenna AM-5AC21-60 AirMAX ac Ubiquiti

As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™ 5ac radios.

They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Performance

The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.

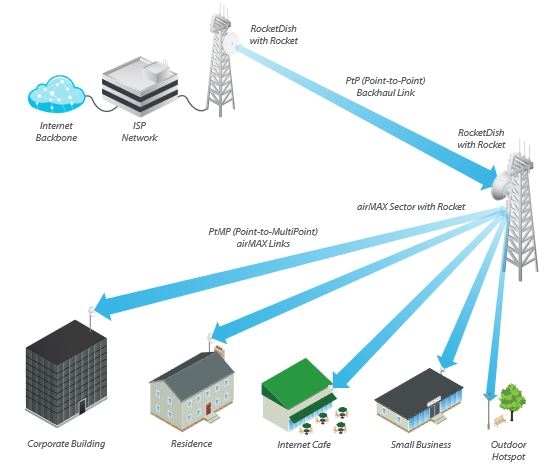

The airMAX ac Sector Antennas provide sector-wide coverage and utilize airMAX
technology to provide carrier-class performance and power.

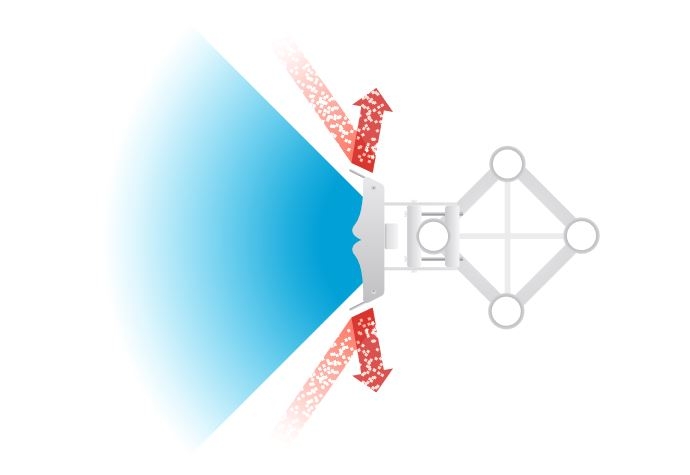

Innovative Deflector Design

Market-Leading Isolation Performance

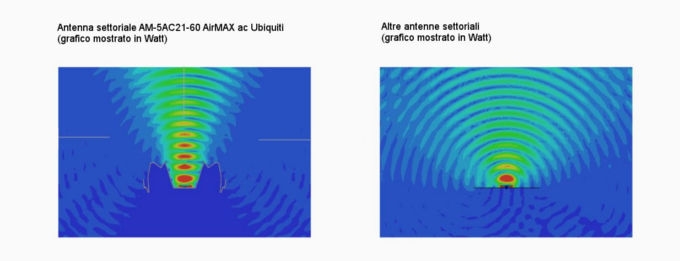

The airMAX ac Sector Antennas are designed to provide advanced noise isolation performance. Compare the diagram of the AM-5AC21-60 to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC21-60. (Both diagrams use a linear scale.)

The strength of the electromagnetic field is color-coded.
• Red: Highest strength
• Green: Medium strength
• Indigo: Weakest strength

Features:

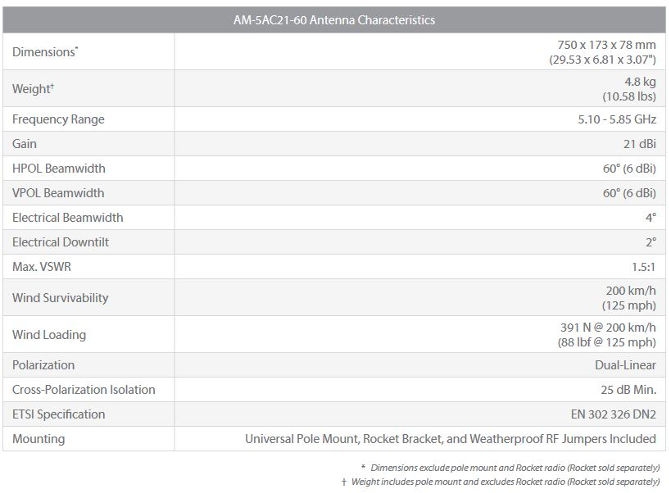

Specifications:
