EdgeSwitch ES-8-150W switch 8 ports PoE+ Gigabit + 2 SFP ports + 1 Console port Ubiquiti

EdgeSwitch ES-8-150W switch 8 porte PoE+ Gigabit + 2 porte SFP + 1 porta Console Ubiquiti

Advanced Switching Technology for the Masses

Build and expand your network with Ubiquiti Networks® EdgeSwitch®, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching performances

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The 8-Port model allows a non-blocking throughput of up to 10 Gbps.

VLANs for Servers and Computers
The EdgeSwitch connects to the Ubiquiti EdgeRouter™ PRO via an SFP uplink.

PoE Flexibility

The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.

By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber connectivity

The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks.

VLANs for Corporate Wireless, Guest Wireless, and VoIP
For wireless access, two Ubiquiti UniFi® Access Points connect to the EdgeSwitch.

Comprehensive User Interface

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.

For advanced users, an industry‑standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality

The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:

• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality

Main features

• (8) Gigabit RJ45 Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• Maximum Power Consumption: 150W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Wallmountable with Mount Brackets (Included)
• Desktop-Mountable (Do not physically stack the ES-8-150W.)
• DC Input Option (Redundant or Stand-Alone)

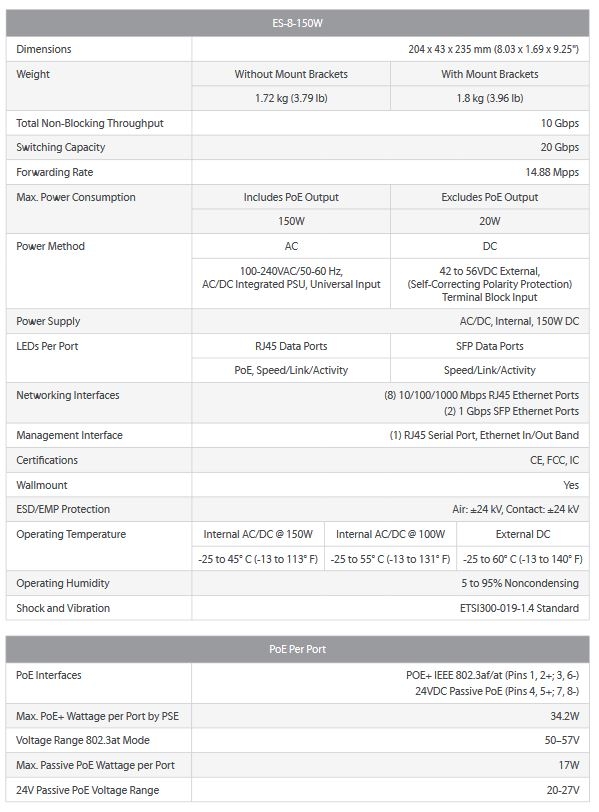

Specifications:
