Directional flat panel antenna 5,0-5,9GHz 19dBi
€25.33
Tax Included
Directional flat panel antenna 5,0-5,9GHz 19dBi
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions
Directional flat panel antenna 5,0-5,9GHz 19dBi

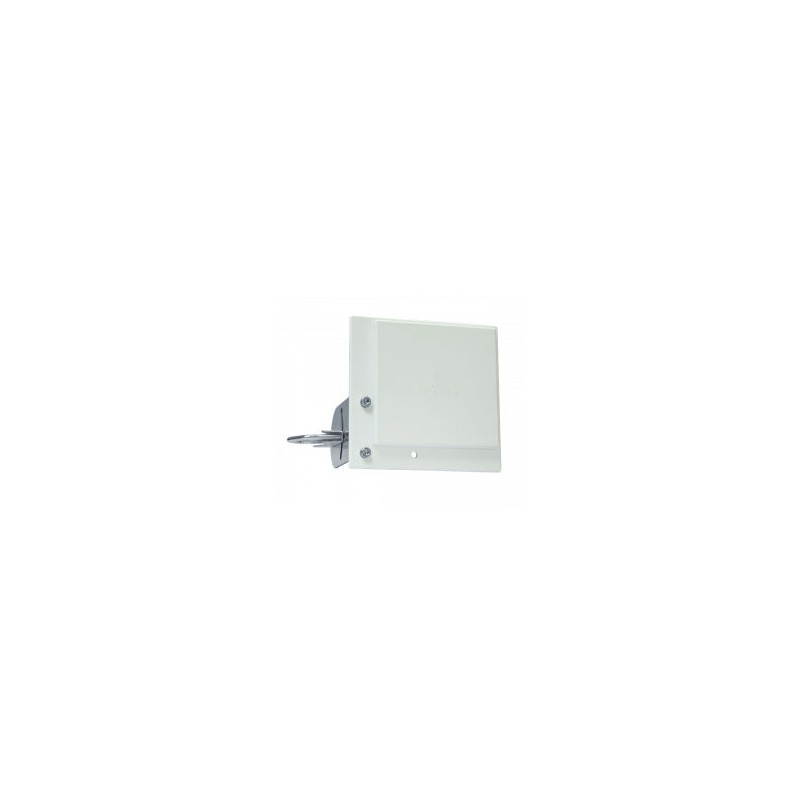

Directional flat panel antenna
PANEL is a directional, subscriber antenna. It can be used in indoor and outdoor applications. Antenna's radiator is a precise designed printed circuit board element. Module design assures perfect fitting what guarantee reliable performance in all weather conditions and constant high production quality.
Key features:
- Modular design assures constant mechanical and electrical parameters
- Lacquered patch matrix guarantee reliable performance in all weather conditions
- Elegance and discreet super slim ABS radome
- Tilting option enables optimal aiming
- Works in horizontal or vertical polarization
Electrical parameters
| Frequency range | 5250-5900MHz |
| Gain | 19 dBi |
| VSWR | < 1.5 |
| Impedance | 50 Ohm |
| Polarization | Horizontal or Vertical |
| Vertical plane | 16° |
| Horizontal plane | 16° |
| Front to back ratio | >25 dBi |
Mechanical parameters
| Dimensions | 200 x 196 x 20mm |
| Weight | 0.84kg |
| Connector | N female |
| Wind load (170km/h) | 51.4 N |
