PowerBeam M5 400 ISO Ubiquiti

 PowerBeam M5 400 ISO Ubiquiti

PBE-M5-400-ISO

Ubiquiti Networks launches the PowerBeam ISO, an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation.

Improved Noise Immunity

The PowerBeam ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ISO blocks noise to improve noise immunity.
This is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Radio Design

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Providing high performance and innovative mechanical design at a low cost, the PowerBeam ISO is extremely versatile and cost-effective to deploy.

AirMax technology

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access ( TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

It supports QoS function.

AirOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi-point networking.

• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support

Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.

AirControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling

Hardware overview

Innovative Mechanical Design

- Metal-plated interior of rear housing Enhances RF shielding.

- Built-in mechanical tilt The mounting bracket offers ± 20° of tilt.

- Convenient pole-mounting Only a single wrench is needed to mount the PowerBeam ISO on a pole.

Industrial-Strength Construction

- Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.

- Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance.

- Protective radome Shields the radio from nature's harshest elements.

Breakthrough RF Isolation

The integrated isolator design spatially filters out interference, so the PowerBeam ISO delivers improved noise immunity in co-location deployments.
Compare the two near-field plots below, and note the superior performance of the integrated RF isolator.
Both near-field plots are displayed in watts and use a linear scale.
The strength of the electromagnetic field is color-coded:

• Red: Highest strength

• Green: Medium strength

• Indigo: Lowest strength

Left; without isolator

Right; with isolator

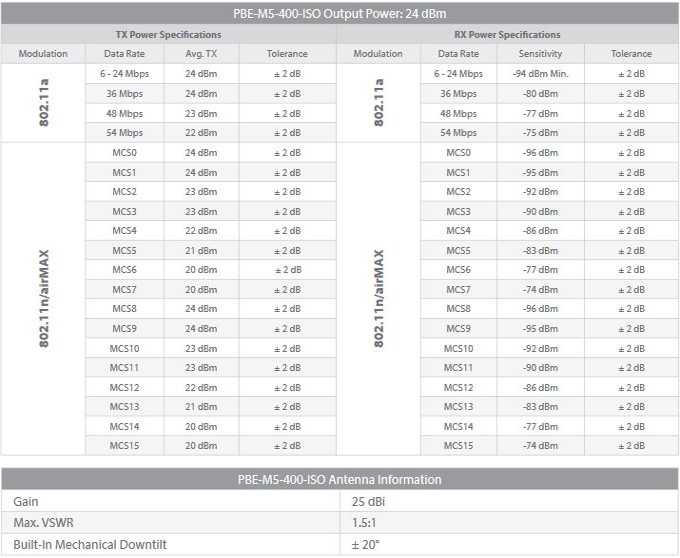

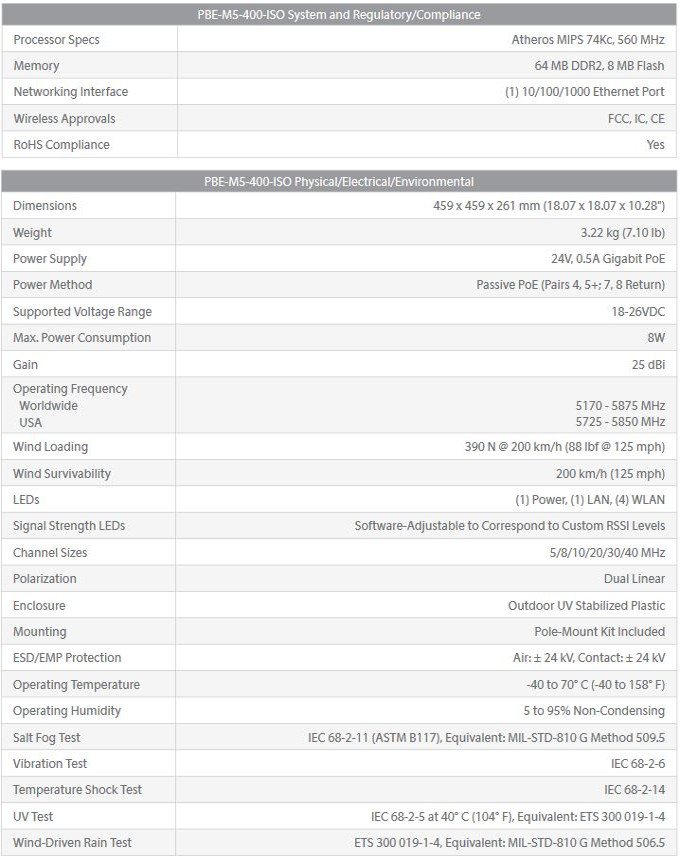

Specifications
