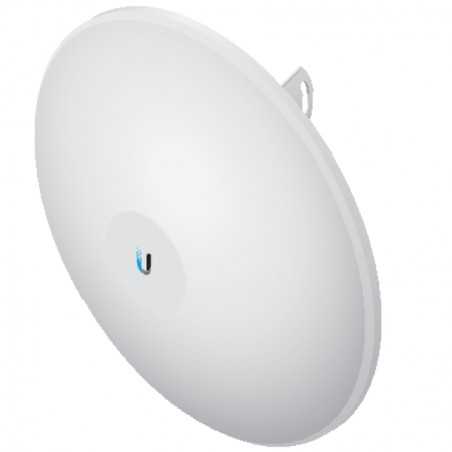

PowerBeam AC PBE-5AC-500 Ubiquiti

Ubiquiti PowerBeam

PBE-5AC-500

It represents the new generation of CPE PowerBeam ac of Ubiquiti, AirMax devices all-in-one.

Improved Noise Immunity

The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

airOS v7  is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful wireless features

• airMAX ac Protocol Support

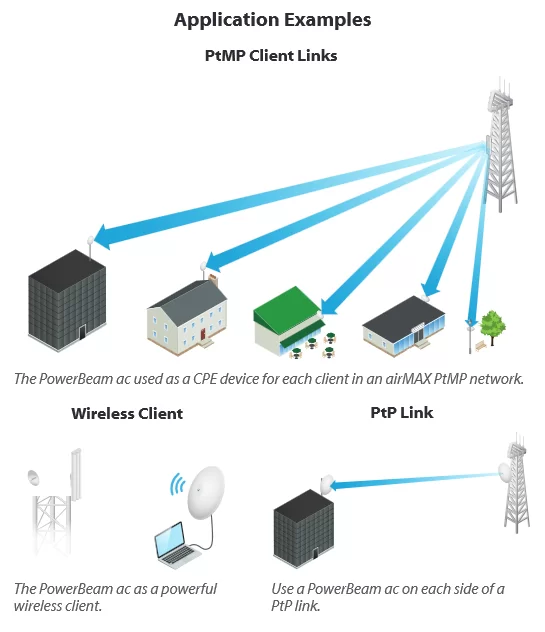

• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control:  Automatic/Manual
• Automatic Distance Selection  (ACK Timing)
• Strongest WPA2 Security

Usability Enhancement

• Dynamic Configuration Changes*
• Instant Input Validation
• HTML5 Technology
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including Ethernet Cabling Test, RF Diagnostics, and airView® Spectrum Analyzenhancements

 * airControl donesn't work with airMAX ac's devices.

Advanced RF Analytics

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.
Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer of airOS V7.

Real-Time Reporting

The Main tab displays the following RF information:
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms
• Signal-to-Noise Ratio (SNR) time series plots

Spectral Analysis

AirView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network.

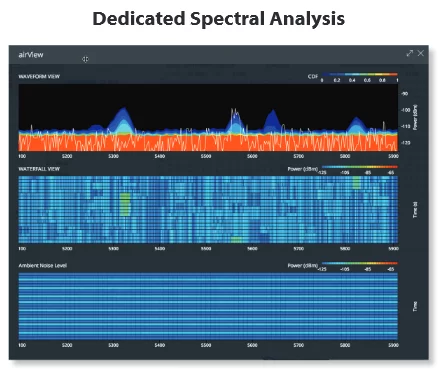

In airView, there are three spectral views, each of which represents different data.
• Waterfall Aggregate energy collected for each frequency
• Waveform Aggregate energy collected
• Ambient Noise Level Background noise energy shown as a function of frequency

Available with a firmware upgrade to airOS v7.1, airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

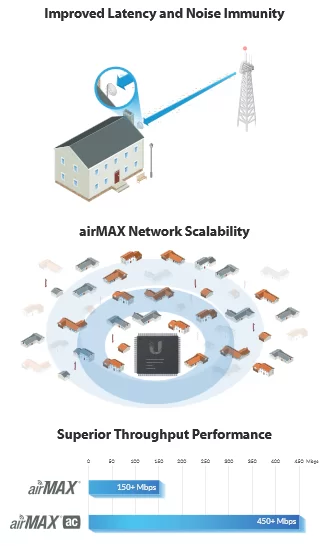

airMAX technology

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access ( TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

It supports QoS feautre.

Superior Performance

Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability.

Breakthrough throughput

airMAX ac supports high data rates, which require dense modulation: 256QAM – a significant increase from 64QAM, which is used in airMAX.
With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mbps real TCP/IP throughput – up to triple the throughput of standard airMAX products.

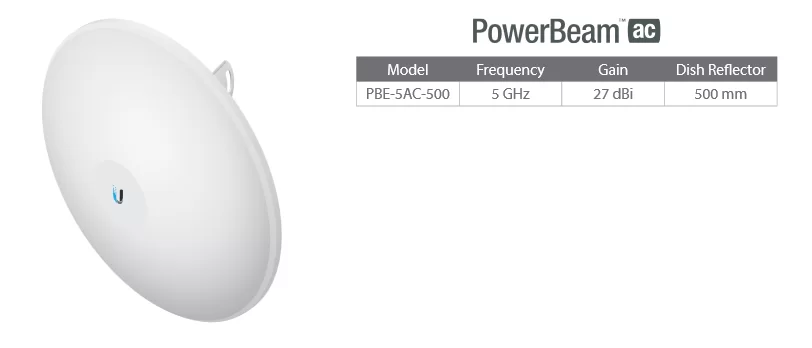

Hardware overview:

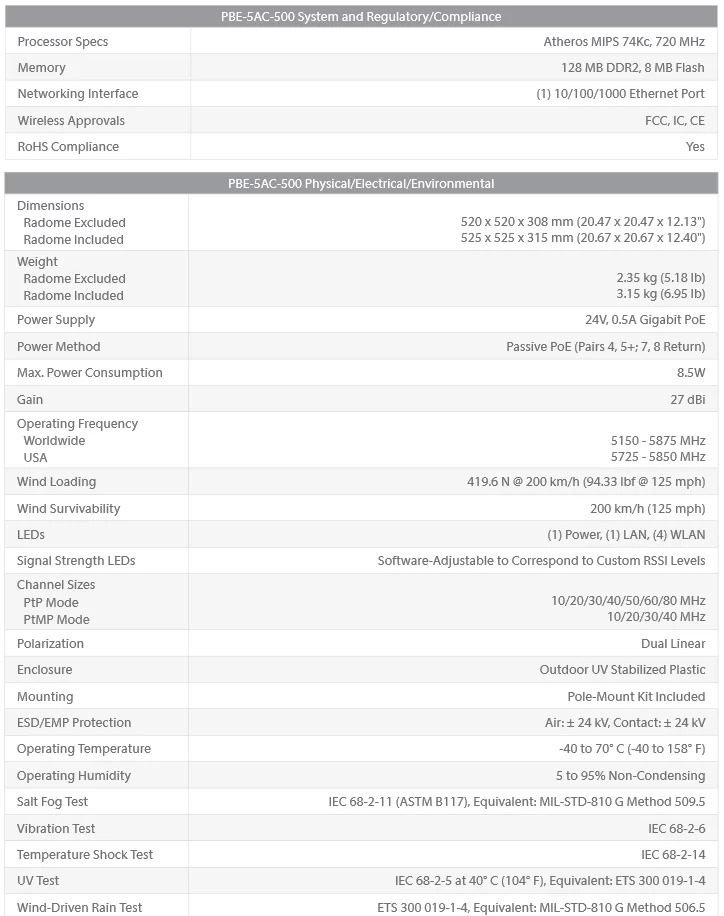

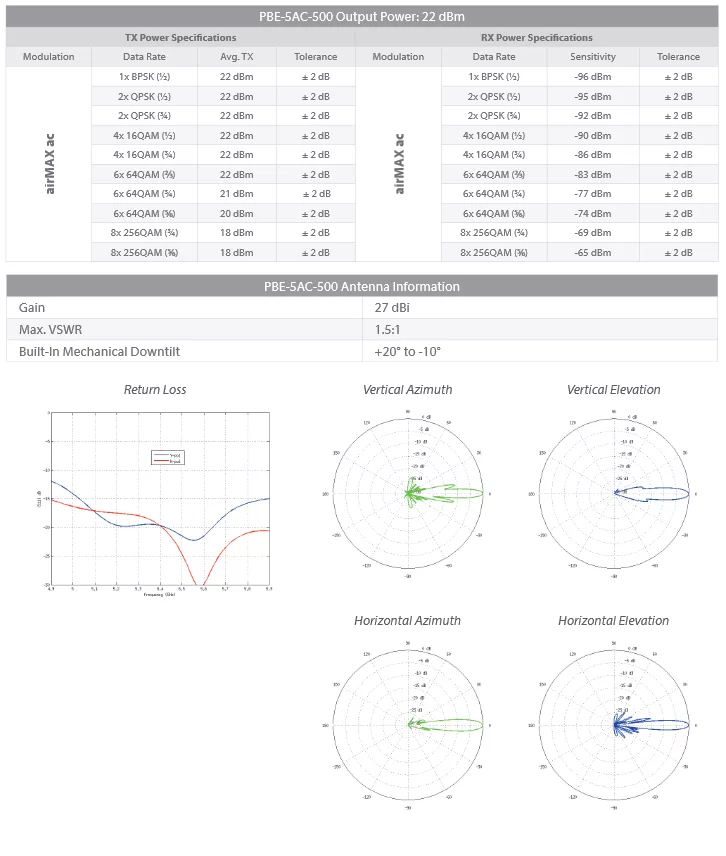

Specifications:
