It is a 5dBi gain antenna built with weather resistant materials.
It can operate at both 2.4 and 5 GHz making it ideal for outdoor dual band operation connected to an access point. Being an omnidirectional it offers 360° coverage with respect to its vertical axis.
It is equipped with an N-Male type connector.
Dual Band use for multipoint bridge or for external AP
Excellent for use on hotspots thanks to the wide range of coverage; it has a gain of 4.5dBi at 2.4 GHz and a vertical aperture of 30°, at 5 GHz it has a peak gain of 7dBi and a vertical aperture of 15°.
The antenna can be used in combination for example with the WHA-5500CPE-NT.
Technical features:
2.4GHz Frequency range | 2400MHz - 2483MHz |
2.4GHz Peak gain | 4.5dBi |
2.4GHz average gain | 2.5dBi |
5GHz Frequency range | 5150MHz - 5875MHz |
5GHz Peak gain | 7.0dBi |
5GHz Average gain | 5.0dBi |

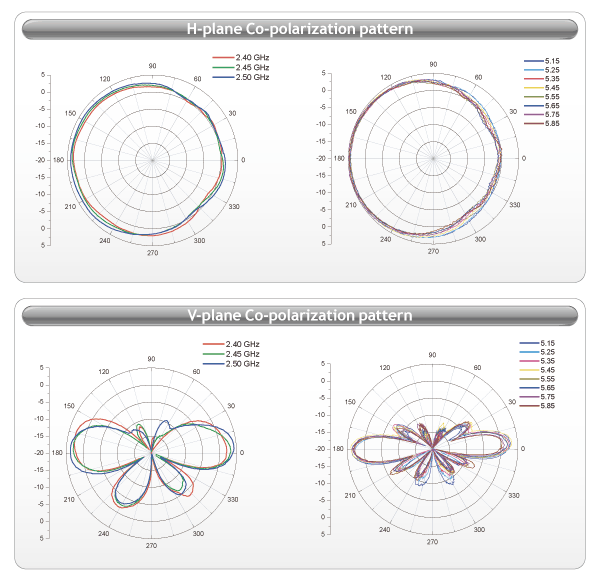

2.4GHz HPBW / horizontal | 360° |
2.4GHz HPBW / vertical | 30th |
5GHz HPBW / horizontal | 360° |
5GHz HPBW / vertical | 15th |
vswr extension | 2.0 : 1 Max. |
polarization | Linear, vertical |
Power handling | 2W |
impedance | 50 ohms |
Connector | Male N-Type |
Survival wind speed | 216 km/hr |
Temperatures | -40°C to +70°C |
humidity | 95% @ 55°C |
material radome | ABS |
Data sheet
