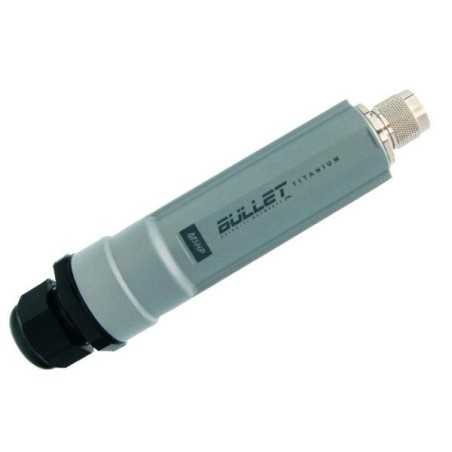

Bullet M5 TITANIUM ubiquitous

Revolutionary Design

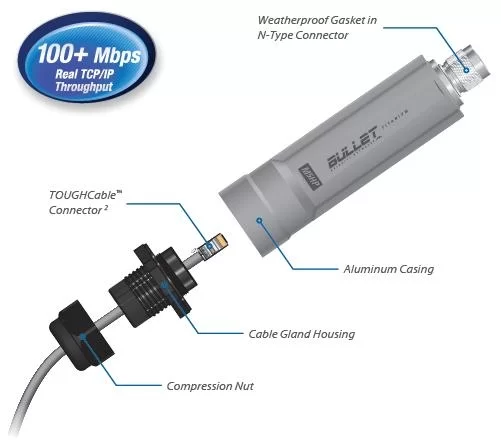

The Bullet M2 Titanium is the latest version of the popular Ubiquiti Bullet. Like its predecessor, Bullet M2 Titanium is a wireless radio with an integrated N-Male connector that can be directly plugged in to any antenna (5 GHz) to create a powerful and robust outdoor Access Point, Client, or Bridge.The Bullet M Titanium features a tough weatherproof design. Made from aircraft-grade aluminum, the casing is designed to withstand nature’s harshest elements.

The maximum output power of transmission is approximately 320 mW, ideal for long-distance connections, providing data transfer speeds of up to 100+Mbps TCP / IP.

The Bullet M5 Titanium is engineered to survive extreme conditions.

Easy to install

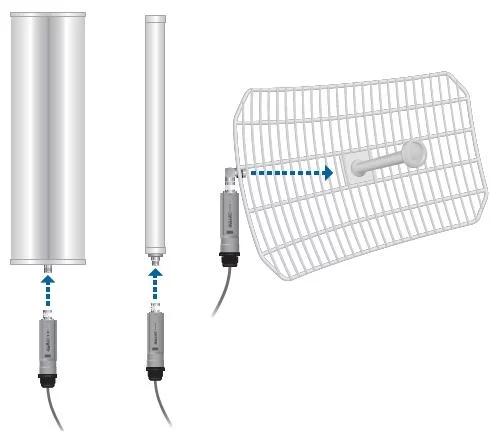

 The Bullet M5 Titanium eliminates the need to use RF cables and requires no special antenna (course with N-Female connector) or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet M Titanium, operators can just plug and go.

Integrated AirMAX technology

The Bullet M5 Titanium can instantly become a powerful TDMA BaseStation utilizing Ubiquiti’s breakthrough airMAX technology.
With airMAX, PtMP networks can scale gracefully while maintaining high throughput and low latency performance.

Software

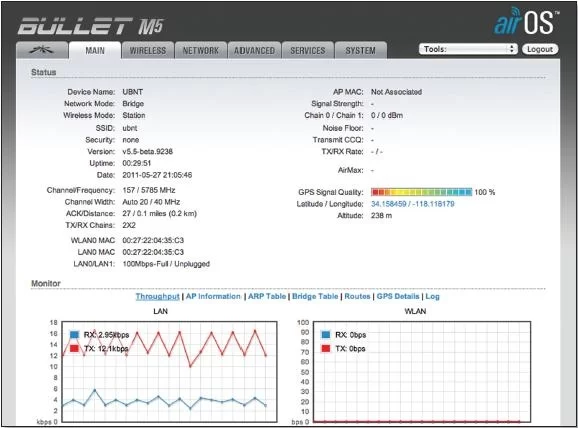

AirOS is a versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture that enables high-performance, outdoor multipoint networking.
• Protocol Support
• Channel Shifting
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multiple VLAN Support
• DHCP Relay
• Multi-Language Support

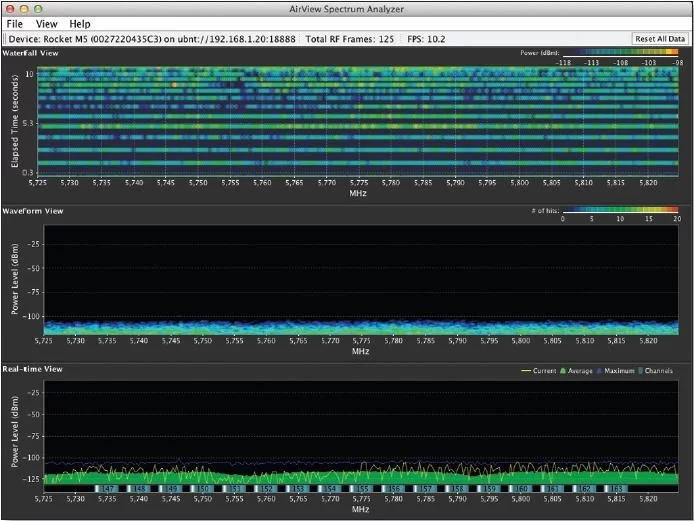

Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.

AirControl is a powerful and intuitive Web-based server network management application that allows operators to centrally manage entire networks of Ubiquiti devices.
• Network map
• Monitor device status
• Mass firmware upgrade
• Web UI Access
• Manage groups of devices
• Task scheduling



The device is powered by PoE adapter included in the package.

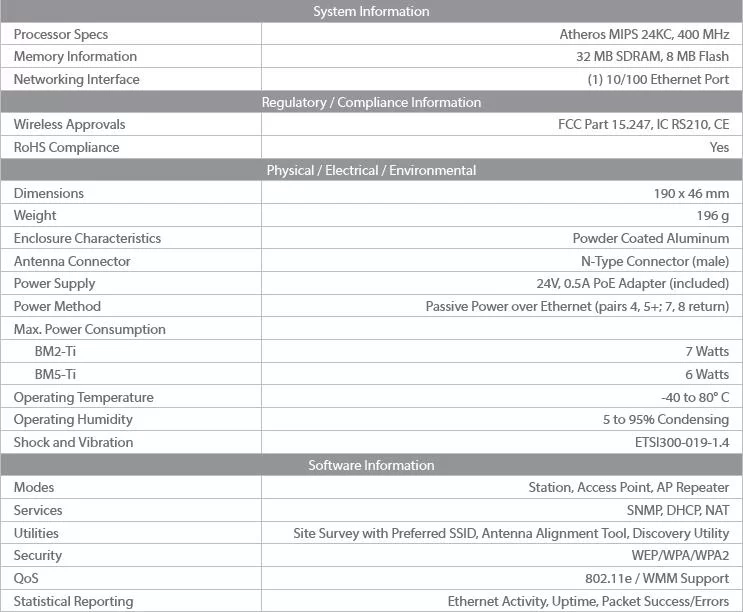

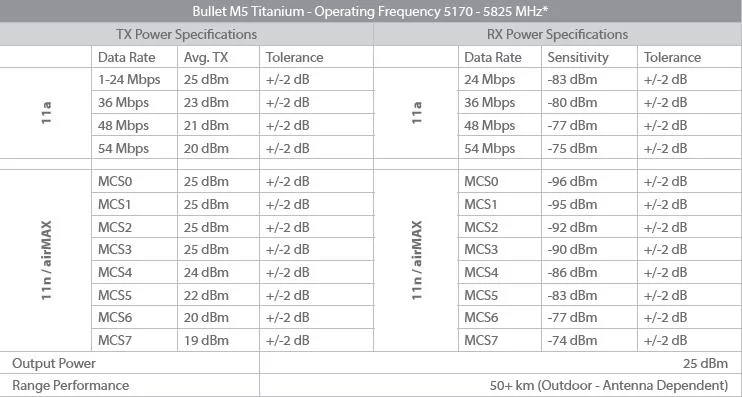

Specifications:
