Sector Antenna 2,4 GHz Airmax 2G-15-120
€165.80
Tax Included
Sector Antenna Ubiquiti
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions

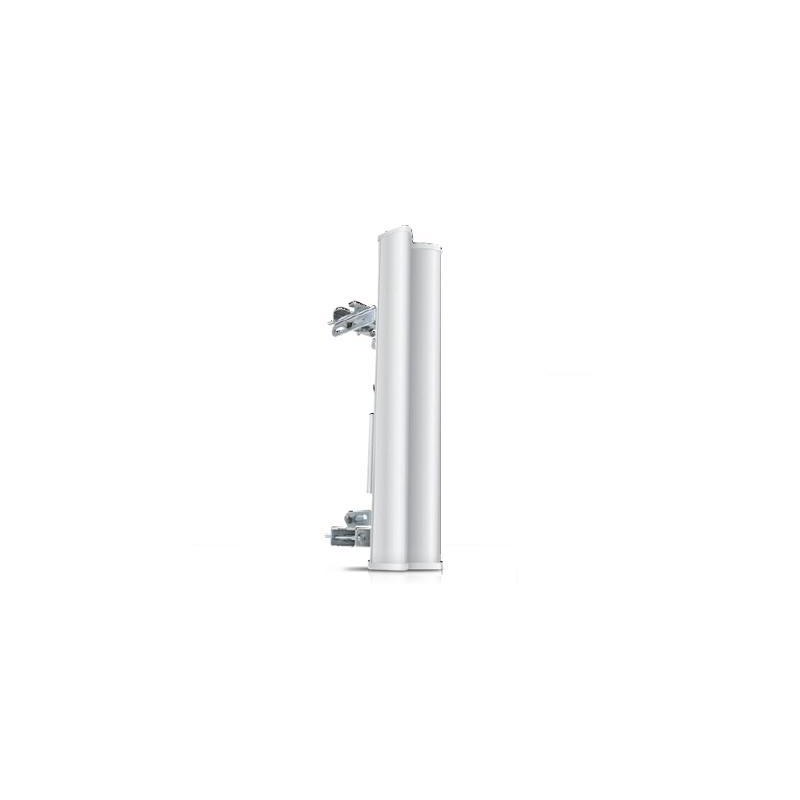

Ubiquiti AirMax 2.4GHz Sector Antenna
AM-2G15-120
Double Polarization (V/H)
15dBi - MiMo 2x2
Double Polarization (V/H)
15dBi - MiMo 2x2
Excellent antenna for devices operating on the bands around 2.4GHz, equipped with 2 RP-SMA jack connectors.
Ideal for Point-to-Multipoint connections and in general when there is a need to cover large spaces with a single antenna.
Includes adjustable pole installation brackets, two weather-protected connection pigtails (for Rocket M2 or other AP equipped with rp-sma jack connectors) and a handy spirit level for perfect vertical antenna placement.
Solidity is one of the advantages of this antenna (excellent quality brackets and casing), built to withstand the elements exposed to the elements over time, without any maintenance.
Technical features:
• Frequency Range: 2.3 - 2.7 GHz
• Gains: 15.0 - 16.0 dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 28dB min.
• Max VSWR: 1.5:1
• H-pol Beamwidth (6 dB): 123 deg
• V-pol Beamwidth (6 dB): 118 deg
• Elevation Beamwidth (6dB): 9 deg.
• Electrical Downtilt: 4 deg.
• ETSI Specification: EN 302 326 DN2
• Dimensions: 700x145x93mm
• Weight: 4.0kg
• Windloading: 160mph
Ideal for Point-to-Multipoint connections and in general when there is a need to cover large spaces with a single antenna.
Includes adjustable pole installation brackets, two weather-protected connection pigtails (for Rocket M2 or other AP equipped with rp-sma jack connectors) and a handy spirit level for perfect vertical antenna placement.
Solidity is one of the advantages of this antenna (excellent quality brackets and casing), built to withstand the elements exposed to the elements over time, without any maintenance.
Technical features:
• Frequency Range: 2.3 - 2.7 GHz
• Gains: 15.0 - 16.0 dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 28dB min.
• Max VSWR: 1.5:1
• H-pol Beamwidth (6 dB): 123 deg
• V-pol Beamwidth (6 dB): 118 deg
• Elevation Beamwidth (6dB): 9 deg.
• Electrical Downtilt: 4 deg.
• ETSI Specification: EN 302 326 DN2
• Dimensions: 700x145x93mm
• Weight: 4.0kg
• Windloading: 160mph
0287
Data sheet
- Type of Radiation
- Sector
