Satellite dish Antenna MiMo

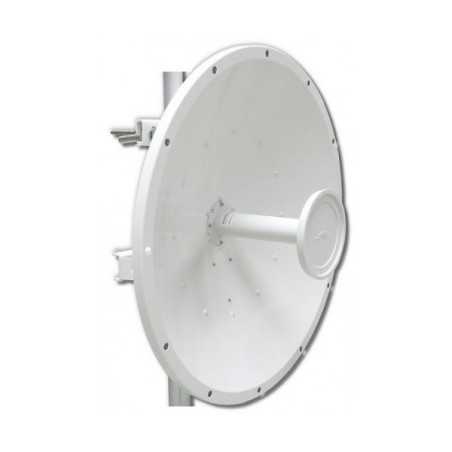

RocketDish 5G-34
The antenna is equipped with 2 connectors for connecting 2x2 MIMO devices (e.g. Rocket M5).
Also included are 2 RP-sma connection cables protected from the weather and the pole fixing brackets with the relative hardware.
Example of installation with Rocket M5 (not included)
Technical features:
Frequency range | 4900MHz - 5900MHz |
Gain | 32.1 - 34.2dBi |
Polarization | Dual Linear |
Cross-pol Isolation | 35dB min |
Max VSWR | 1.4:1 |
Hpol (3dB) | 3 dec. |
Vpol (6dB) | 3 dec. |
Front-to-back ratio | -42dB |
ETSI Specification | EN 302 326DN2 |
Dimensions | 972mm diameter |
Weight | 13.5kg |
