Since 2009 the reference point for Wi-Fi in Italy
Sector Antenna 5 GHz Airmax 5G-19-120
€145.98
Tax Included
Sector Antenna
Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions

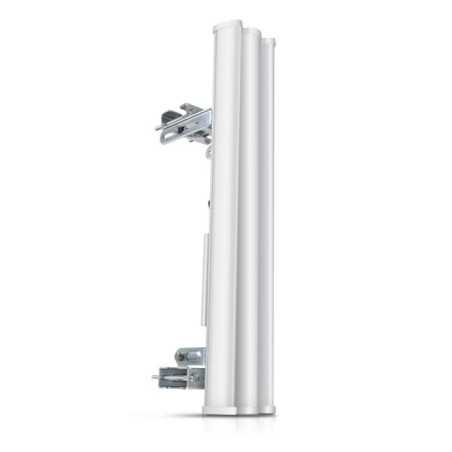

Ubiquiti AirMax 5GHz Sectoral ANTENNA
AM-5G-19-120
Double Polarization (V/H)
19dBi - 120° - MiMo 2x2
19dBi - 120° - MiMo 2x2
Excellent antenna for devices operating on the bands around 5GHz, equipped with 2 RP-SMA jack connectors.
Ideal for Point-to-Multipoint connections and in general when there is a need to cover large spaces with a single antenna.
Includes adjustable pole installation brackets, two weather-protected connection pigtails (for Rocket M5 or other AP equipped with rp-sma jack connectors), and a handy spirit level for perfect vertical antenna placement.
Solidity is one of the advantages of this antenna (excellent quality brackets and casing), built to withstand the elements exposed to atmospheric agents over time, without any maintenance.
Technical features:
•Frequency Range: 5.15 - 5.85 GHz
• Gain: 18.6 - 19.1 dBi
•Polarization: Dual Linear
•Cross-pol Isolation: 28dB min.
•Max VSWR: 1.5:1
•Hpol Beamwidth (6dB): 123 deg.
•Vpol Beamwidth: (6dB): 123 deg.
•Elevation Beamwidth: 4 deg.
•Electrical Downtilt: 2 deg.
• ETSI Specification: EN 302 326 DN2
•Dimensions: 700x145x79mm
• Weight: 5.9kg
•Windloading: 160mph
air5-19120
Data sheet
- Type of Radiation
- Sector
