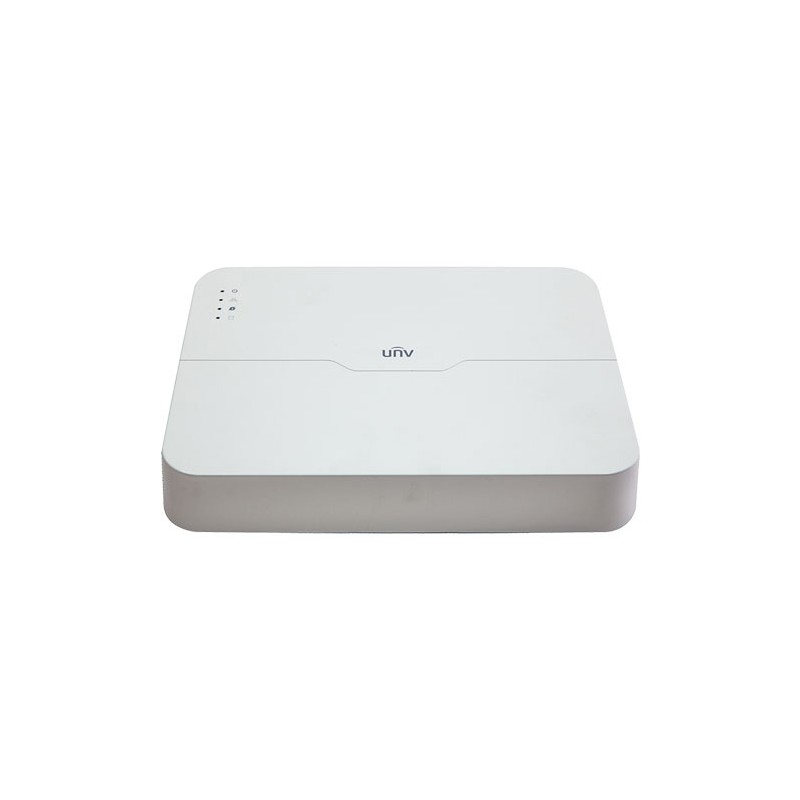

NVR 4 channels 1 SATA Slot 4 Ethernet PoE ports Resolution up to 8MP UNV
NVR 4 channels 1 SATA slot 4 Ethernet PoE ports Resolution up to 8MP
A V
Specifications
Technical features
Audio/Video input | |
IP video input | 4-ch |
Two-way audio input | 1-ch, RCA |
Net | |
Incoming bandwidth | 40Mbps |
Outgoing bandwidth | 64Mbps |
Remote users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Audio/Video output | |
HDMI/VGA output | HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
Registration resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Sound output | 1-ch, RCA |
Synchronous playback | 4-ch |
Runner mode view | 3/4 |
Decoding | |
Decoding format | Ultra 265, H.265, H.264 |
Live view/playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capacity | 1x4K@30, 2x4MP@30, 4x1080p@30, 8x720p@30, 16xD1 |
hard drives | |
SATA | 1 SATA interface |
Capacity | Up to 10TB for each disk |
Smart | |
VCA detection | Face detection, Intrusion detection, Line crossing detection, Audio detection, Blur detection, Scene change detection, Auto tracking |
VCA search | Facial Search, Behavior Search |
Statistics analysis | People counting |
External interface | |
Network interface | 1 RJ-45 10M / 100M self-adaptive Ethernet interface |
USB interface | Back panel: 2 USB 2.0 ports |
PoE | |
Interface | 4 independent 100 Mbps PoE network interfaces |
Maximum power | Maximum 30W for single port Maximum 54W total (13.5W each) |
Supported standards | IEEE 802.3at, IEEE 802.3af |
General | |
Diet | 48V DC Power Consumption: ≤ 8W( without HDD ) |
Work place | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
Dimensions (LxWxH) | 42 × 205 × 205mm ( 1.7" × 8.1" × 8.1" ) |
Weight (without HDD) | 0.59kg ( 1.3lb ) |
Data sheet
