AirLive OD-2060HD
The OD-2060HD camera is AirLive's high-end pan-tilt camera, with IP66 protection rating and vandal-proof casing.
It is an IP camera, 2 MegaPixel Pan-Tilt-Zoom (digital), video streaming in H.264 format, supports power supply via Power Over Ethernet and is Onvif compatible.
Video quality up to 1080p @ 30fps which means sharp and detailed images.
Thanks to the ability to move the camera lens, you can monitor the area you want.
Typical installations of this camera can be made in hotels, banks, shops, car parks, warehouses, bays, ports, airports.
IP66 vandal-proof Pan-Tilt IP camera
The OD-2060HD is a CMOS Pan/Tilt dome camera, equipped with a removable mechanical automatic IR CUT filter.
With an external IR source (not included) it can capture clear images even in dark environment.
The Pan-Tilt function allows video shooting from any angle and in any lighting condition.
The IP protection degree and the vandal-proof casing protect it from harmful attacks and adverse climatic conditions.
2.0 MegaPixel - video quality 6 times higher than VGA resolution
The AirLive OD-2060HD offers high quality images with its 1080p @ 30fps.
6 times higher resolution than a normal CCTV camera.
One of the most exciting benefits of MegaPixel cameras is their ability to capture more useful detail, from reading license plates to recognizing a human face.

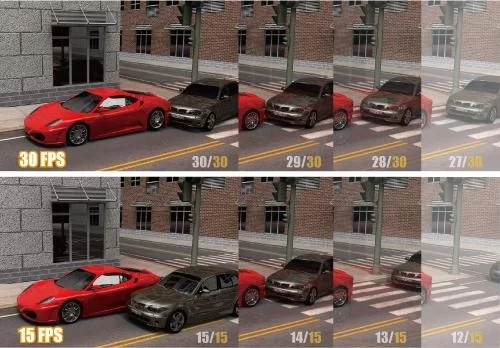

The new 30fps CMOS sensor provides clearer and smoother video quality compared to the old 15fps.
H.264 video compression
H.264 is a high-performance compression standard that boasts a much higher compression ratio than MJPEG or MJPEG-4, dramatically reducing file sizes and ensuring network bandwidth is conserved.
With this technology you get about 90% reduction in the size of the generated files, for example 1MB can be reduced to just 10kb.
Professional video surveillance software

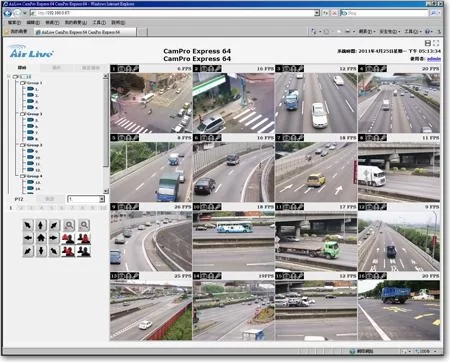

The OD-2060HD camera supports CamPro Express software (included in the package), which allows the user to view and record multiple live images at the same time.
Using multiple OD-2060HD user can easily build his video surveillance system.
The camera also supports CamPro Professional, professional video surveillance software with very high potential (license sold separately).
Web monitors
CamPro Express allows you to monitor up to 64 channels via computer and web user interface.
It is also possible to choose the number of cameras to be displayed on the monitor from 1 to 64.
External installation
When installing the OD-2060HD outdoors without a cover, we recommend using the specific support WMK-2056 ( not included in the package ).
Thanks to this bracket, the camera will be better protected in case of heavy rain.
WDR supportWhen there is strong light behind an object, the camera thanks to Wide Dynamic Range technology automatically adjusts the backlight allowing you to bring the object into perfect focus.
Applications for Android and IOS
It is possible to view multiple AirLive cameras even on Android, Iphone or Ipad devices thanks to the apps developed.
Technical features:
| model | |
| Room | | Room Type | | | - Outdoor Dome Vandal Proof Type |
| Image Sensor | | | - 1/2.7” 2 Mega Pixel Color CMOS Sensor |
| Sensor Resolution | | | - 1920X1080 |
| LensType | | | -Board Lens | | | - 4.3mm, F1.8 |
| Max IR Distance | | | - It is not |
| Minimum Illumination | | | - 1 LUX |
| Mechanical IR-Cut Filter | | | - Built-In Removable IR Cut Filter |
| Viewing Angle | | | - 61°56' (H) 48°27' (V) 73°44' (D) |

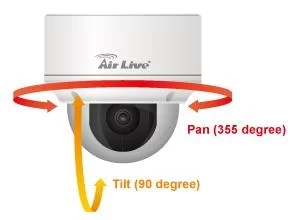

| Pan/Tile Control | | | - Pan Degree-0~355° | | | - Tilt Degree-0~90° | | | - Preset Points-Up to 128 preset points | | | - Tour Room - Up to 16 tours |
| Analog Video Out | | | - It is not |
|
| Video | | Video compression | | | - H.264 MPEG4 MJPEG |
| Resolution and Frame Rate | | | - 1920x1080 @ 30fps | | | - 1280x720 @ 30fps | | | - 640x360 @ 30fps | | | - 320x180 @ 30fps | | | - 160x90 @ 30fps |
| Streaming | | | - Multi-profile streaming | | | - Streaming over UDP, TCP, or HTTP | | | - M-JPEG streaming over HTTP (for non IE browsers) | | | - 3GPP mobile view | | | - Configurable frame rate and bandwidth | | | - Support both CBR and VBR | | | - ROI |
| Region of Interest | | | - Up to 5 configurable regions |
| Image processing | | | - AE, AWB | | | - Noise reduction | | | - Color, brightness, sharpness, contrast, Hue | | | - Mirror/Flip | | | - Privacy Masks | | | - Text, time and date OSD |
|
| Audio | | Audio encoders | | | - RTSP: G.711 64kbps, G.726 32kbps | | | - 3GPP: AMR |
| Audio Streaming | | | - Two way |
| Audio Inputs/Outputs | | | - speaker and microphone port |
|
| Network | | Ethernet | | | -One RJ45 port; IEEE 802.3u Compliant 10/100 Mbps Fast Ethernet with Auto-MDIX |
| PoE or Wireless | | | - IEEE802.3af |
| Supported Protocols | | | - TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP and RTCP |
| Security | | | - Password protection | | | - IP filter | | | - HTTPS |
| Users | | | - Up to 20 simultaneous users |
|
| LED and Button | | Links/Act. LEDs | | | -Green Color |
| Reset Button | | | - Reboot and Factory Default (Push and Hold Over 8 Sec) |
|
| General | | Network Processor | | | - Basic DSP |
| System ROM | | | - 16MByte NAND Flash |
| System RAM | | | - 256Mbyte DDR SDRAM |
| power consumption | | | - 9 Watts Max. |
| Connector | | | - RJ-45 10BaseT/100BaseTX | | | - 12V DC power jack | | | Microphone/Speaker jack | | | - Composite video out | | | - Reset button |
| environment | | | - Operation: Temp: 0℃ ~ 50℃ Humidity: 20% ~ 80% non-condensing | | | - Storage: Temp: -15℃ ~ 60℃ Humidity: 0% ~ 90% non-condensing |
| Dimension | | | - HxWxD:130x140x140mm |
|
| System Integration | | Software | | | - Campro Express 64, Campro Professional, Campro HD | | | - Search & Installation - IP Wizard II |
| Event Triggers | | | - Motion detection | | | - External input via DI interface |
| Event handlers | | | - FTP or NAS file upload | | | - Email alter | | | - HTTP, and TCP notification | | | - DO (digital output) alarm | | | -Move to preset position |
| Application Programming Interface | | | - ONVIF 2.1.1 | | | - Open API for software integration | | | - SDKs |
| Video Buffers | | | - Pre- and post-alarm buffering |
| Alarm Triggers | | | - Intelligent video motion detection and external input |
| Alarm Events | | | - File upload via FTP or email | | | - Notifications via email, HTTP, and TCP | | | - External output activation | | | - Audio alert output |
|
| Viewing System | | os | | | - Windows® XP, Vista, 7 |
| Browsers | | | - IE 6.0 or later, Firefox 2.0 or later, Safari |
| Cell phones | | | - With 3GPP player |
| Video Players | | | - VLC, Quick Time, Real Player, Core Player |
|
