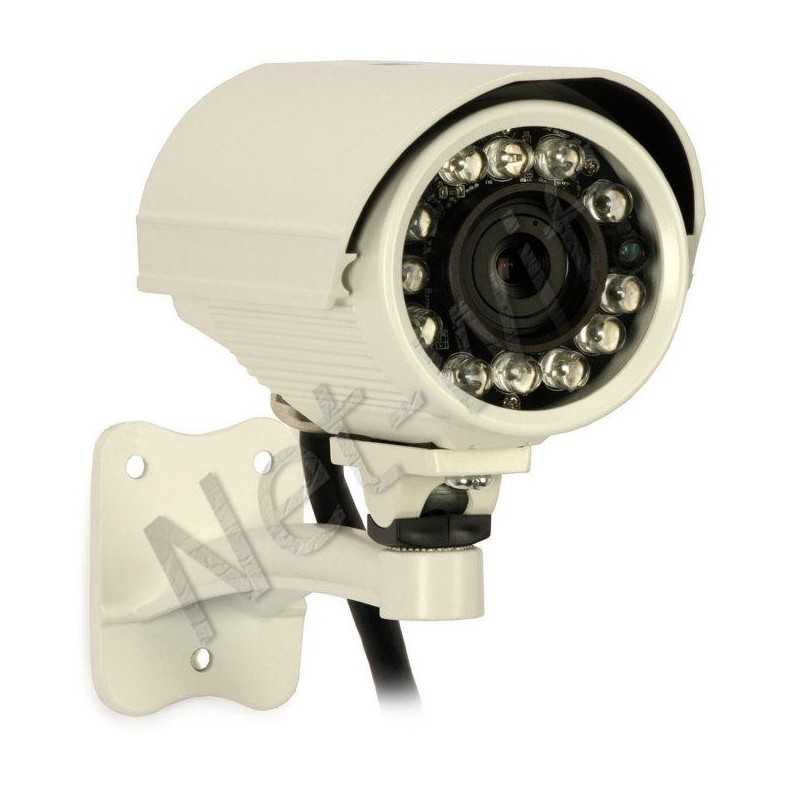

Telecamera IP Pixord PL621E
Una delle più robuste ed affidabili telecamere ad alta risoluzione mai costruite
Alimentabile anche da POE.
Supporto audio 2 Vie.
Supporto e minuteria per l'installazione a muro inclusi.
Caratteristiche tecniche:
Video Compression | H.264 / Motion JPEG | |
Video Resolution | UXGA: 1600x1200 HD720: 1280 x 720 SVGA: 800 x 600 VGA: 640 x 480 QVGA: 320 x 240 | |
Bit Rate | 64K ~ 6M bits/sec (CBR/VBR configurable) | |
Frame Rate | 30 FPS @ HD720/ SVGA/ VGA/ QVGA, 15 FPS @ UXGA at both H.264/ MJPEG resolutions | |
Image Device | 1/3” 2 Megapixels Progressive Scan CMOS Sensor | |
Lens Type | Fixed Lens, CS Mount , IR correction, Focal Length 6.0mm, F1.8 | |
Radiant Distance | 15m | |
IR LED | 12 units IR 8ψ LED, 850nm | |
D/N Function | Removable IR Cut Filter | |
Minimum Illumination | IR off:1.5 lux @ F1.8; IR ON: 0 lux (15M) | |
Video Control | Digital PTZ, controllable frame/ bitrate(bandwidth),VBR / CBR control , RTSP Path | |
Image Adjustment | Brightness, Saturation, Sharpness, Exposure control , White balance, Backlight compensation, Rotation | |
Event System | Trigger | GPIN, Motion detection, Manual Trigger |
Action | File upload via FTP and E-Mail Alarm Notification via E-Mail External output activation | |
Network Interface | 10BASE-T/100 BASE-TX | |
Protocols | HTTP,HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP,RTSP, RTP, Bonjour, UPnP | |
Audio Capability | 1 x Audio line input, 1 x Audio line output | |
Audio Compression | G.711 PCM 8Khz | |
Power Supply | AC/DC switching power adapter, input: AC100 ~240V, output: DC 12V/2A (not included) | |
Built-in PoE IEEE 802.3af Class 3 (PoE model) | ||
Security | Password Protection , Https encrypion , User accesslog | |
Power Consumption | 8W | |
Water Proof Standard | IP66 | |
Operation Temperature | -10°C ~ 50°C | |
Operation Humidity | 20% ~ 80% RHG | |
Dimension (L x W x H) | 77mm(W)x160mm(L)x80mm(H) | |
Net Weight | 700g | |
Browser | IE 6.0 above | |
Certification Report | CE/FCC, ROHS,WEEE | |
I/O Connectors | 1 x RJ45 10BASE-T/100 BASE-TX(LED x 2) 1 x BNC composite video output 1 x DC Jack 1 x Terminal block 1 x Audio line out jack 1 x Audio line in Jack | |
Package Contents | 1 x CD (manual and software) 1 x Quick Installation Guide 1 x Stand for mount 1 x Tool Package |
