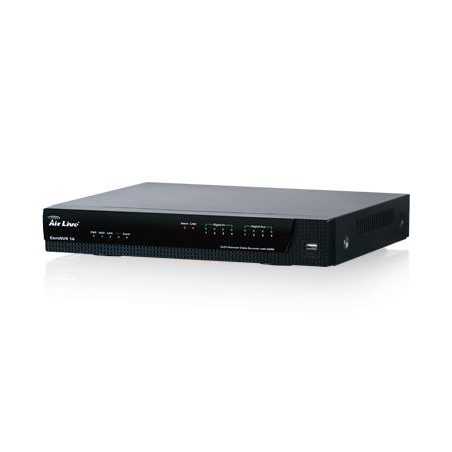

CoreNVR 9 Airlive

AirLive CoreNVR series is a new generation Network Video Recorder for home, retailer stores and small office applications. It supports up to 4 Megapixel resolution for IP cameras with H.264 video codec for high quality, real-time monitoring, recording and playback. It also supports Local Display to provide you high resolution video quality on any HD monitor. You can easily setup the system by a few clicking on the build-in web pages of CoreNVR series with AirLive IP cameras for searching, configuring and notifications from multiple different alarm triggered. Furthermore, with two internal 6TB SATAlll HDD and eSATA interface, it provides you more storage capacity and keeps the video files in the CoreNVR system for longer period.

Recording live monitoring and playback without additional PC

AirLive CoreNVR is a plug-and-play appliance and it utilizes the embedded Linux technology, which provides you easy setup and easy to manage the system with user friendly web-based GUI interface. For the connection, you may connect all AirLive IP cameras and CoreNVR system via AirLive POE switch as picture shown below. With AirLive POE switches and IP cameras, CoreNVR series will be your most reliable guard for securing your family and property.

Different display type on live Monitoring

Fully Control on your IP-Base Cameras on IE and Mobile app software

You may search and install AirLive IP cameras from IE interface with fully functional control which gives you more convenient and effeciency. AirLive CoreNVR also supports CamPro Mobile software for iOS and Android mobile systems, so you may connect to the CoreNVR at anytime as you need when you have smooth internet/WiFI connnections.

Multiple event detection and alarms to enhance security for your property

AirLive CoreNVR supports multiple event detection from motion, digital input detection, camera disconnect, HDD malfunction and schedule event trigger, all of them are able to send alarm through OSD display, digital output, Buzzer, trigger recording, e-mail, FTP, HTTP and TCP servers. Those alarm notifications provides you extra protection when such event occurs so you won’t miss any critical information.

Joystick, Mouse controlling interface for PTZ Cameras

AirLive CoreNVR is able to control IP cameras PTZ function with both mouse and USB interfaced joystick for fully control. Then joystick has 12 programmable buttons which allows you to re-define the configuration on the CoreNVR system.

CMS for AirLive Core NVR
The CMS for AirLive CoreNVR is a software to manage CoreNVR systems, it can be used as a control room to manage up to 256 channels, with low bitrate transmission and unlimited group management, the CMS is able to view maximum 64 channels at a page and you may switch between groups to see up to 256 channels live view or maximum 16 channels playback at a page. The CMS for AirLive CoreNVR is good for franchise stores via internet or large installations under LAN area, or any environment where needs control center to monitor for multiple AirLive CoreNVRs.


Specifications:

Chipset ARM Cortex A9 LAN Port Giga RJ-45 Ethernet Port x 1 Video Output VGA x 1 + HDMI x 1 Audio Input MIC x 1 (phone jack 3.5mm) Audio Output Phone Jack 3.5mm x 1 HDD SATAllI HDD up to 3TB x 2 e-SATA e-SATA Port x1 Backup USB Mass Storage LED Indicator PWR x 1, HDD x 1, LAN x 1, REC x 1, Event x 1, Alarm x 1, CAM x 1, DI x 4, DO x 4 USB Mouse x 1 / Backup x 1 Sensor In / Alarm Out Digital Input x 4 / Digital Output x 4 Button Factory Default Reset x 1 Buzzer Buzzer x 1

Software:

Video Codec H.264 Audio Codec G.711 / G.726 Video Resolution QVGA / VGA / SXGA / Full HD / 3M / Throughput 40Mbps System Setting Resolution selectable, 1024x768 / 1280x1024 / 1366x768 / 1440x900 / 1920x1080 Display style selectable. Normal / Simple / Professional / Advance Reset Default Backup / Restore Firmware Upgrade System Restart Live View 1 / 4 / 9 / Division / Full Screen Snapshot Selectable display cameras Two-way audio PTZ Support PTZ cameras Preset / Tour / Auto pan / Iris / Focus / Speed Able to control by Joystick Record Schedule / RTC / Motion Detection / DI Detection / Event Trigger Pre-alarm / Post alarm configuration Auto recycle Save to internal HDD, eSATA or USB drive Playback 1 / 4 / 9 / 9 Division / Full Screen Play / Reverse / Pause / Seek / Pre- I frame / Next Frame Speeds: 1/4 , 1/2 , 1 , 2 , 4 , 8 , 16 , 32 Convert to AVI Multi-Cameras Backup Motion Detection Up to 10 regions Adjustable Object Size and Sensitivity Event Type Motion Detection Digital Input Audio Detection Camera Disconnection Schedule Trigger HDD Error Alarm Buzzer / DO / Display on Screen / Record / Snapshot / E-Mail / TCP / HTTP / FTP Notification SMTP / HTTP / FTP / TCP Schedule Setting RTC / Motion Detection / DI Detection / Event Detection Network Fix IP / DHCP / PPPOE / DIPS Report / UPNP transversal Snapshot Preview snapshot in HDD or removable device Search event snapshot Backup to USB device Disk Management Partition management Format partition Samba management USB removable device Support RAID storage Languages English / Traditional Chinese / German / Greece / Korea / Russia / Spain / Portugal / Polish / Czech RemoteProgram Fully function remote live view and playback Support low bit-rate connection Selectable Camera Connection IE 7 or above iOS and Android mobile devices

Generali:

Power AC100-240V/in, DC12V(4A) Temperature Operating: 0°C ~ 40°C Humidity Operating: 10%~80% Dimension 33.3 x 5.7 x 25.2 cm Certificate CE, FCC
