LiteBeam AC 23 LBE-5AC-23 2x2 MIMO airMAX ac Ubiquiti

LiteBeam AC 23 LBE-5AC-23 2x2 MIMO airMAX ac Ubiquiti

Ubiquiti Networks lancia l'ultima generazione di airMAX® CPE, la LiteBeam® 5AC Gen 2.

Improved Noise Immunity

The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.The radio and antenna are combined to create a more efficient and compact CPE.

 airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful wireless features

• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width

   PtP: 10/20/30/40/50/60/80 MHz
   PtMP: 10/20/30/40 MHz


• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

Usability Enhancements

• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistic
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer

UMOBILE APP

The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi

The U Mobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play™(Android). UMobile allows you to set up, configure, and manage the LiteBeam 5AC Gen 2. It offers the following options once you're connected or logged in to the device:

• Status Check link status information or the basic configuration settings of the LiteBeam 5AC Gen 2.
• Configuration Change or update the existing configuration of the LiteBeam 5AC Gen 2.
• Tools Access tools for initial installation and configuration of the LiteBeam 5AC Gen 2.
• Actions Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults, access the airOS UI in the web browser, or disconnect from the LiteBeam 5AC Gen 2.

Hardware overview

Full Adjustment Flexibility

The LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.

Improved Mounting and Surge Protection

Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments.

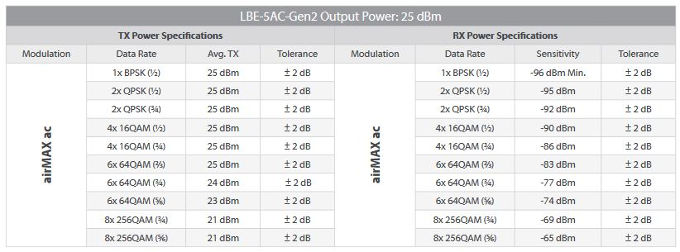

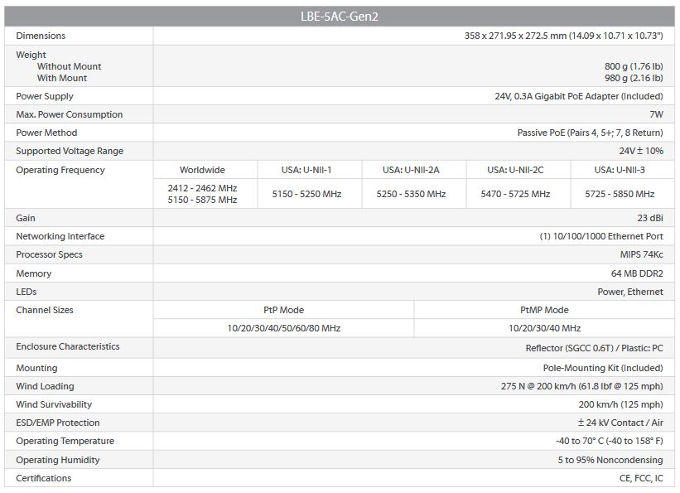

Specifications:
