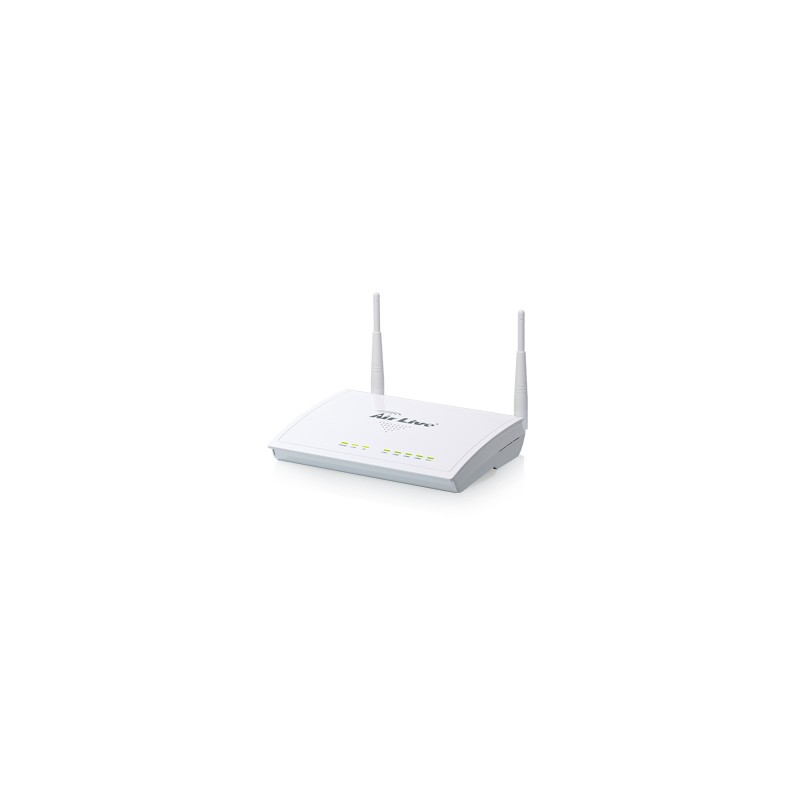

The AC-1200R use the next generation WiFi technology that allows the router to connect with both 5Ghz and 2.4GHz wireless device at speed up to 1200Mbps. It is also completely compatible with legacy 11n, 11a, 11g, and 11b devices.
50% Greater Coverage
Hi-Power radios and MIMO antennas enable the AC-1200R to provide up to 1.5 times the coverage comparing to normal wireless routers. That means faster speed at further distance.
Digital home network
The AC-1200R’s dual radio system is designed for digital home applications. The 5GHz network is less vulnerable to interference; therefore, it is suitable for video streaming and game networks. The 2.4GHz radio provides a separate network for computers, tablet PC, and smart phones.
In addition, the AC-1200R includes 5 Gigabit LAN ports which allow maximum speed connection with NAS or PC.
Free Central management software
The free AirLive Central software can discover your router automatically, let you change settings, or even upgrade firmware in a very easy to use interface. You can even do group configuration and firmware upgrades multiple AirLive products such as AC-1200Rs, AC.TOP, and N.TOP. Please check the video below for details.
Independent Radio Operation
The AC-1200R inherited the capability of our popular G.DUO and A.DUO access points. Each radio can operate in different modes for up to 5 different wireless modes. You can configure the AC-1200R to suit different operation environment.
Detachable Antennas
5 operations with detachable antennas allow the AC-1200R to use in various indoor + outdoor application, such as sharing a remote internet connection signal from outside.
4 LAN ports and 1 WAN
The AC-1200R has on the back 5 Gigabit LAN ports that allow the connection of devices via ethernet cable.
Specifications:
Model
AC-1200R
Chipset
MEDIATEK MT7620A (CPU) + MT7530W (Switch)
8MB Flash
64MB RAM
LAN Port
4 x 10/100/1000Mbps LAN
1 x 10/100/1000Mbps WAN
Antenna
2 X 2.4G/5G dual Band R-SMA Antenna
Frequency Range
2.4G
-
2.4000~2.4835GHz (Industrial Scientific Medical Band)
5G
-
5180 ~5240GHz for ETSI, FCC
-
5745 ~ 5825GHz for FCC
Data Rate
11n (40MHz): MCS0-7, up to 300Mbps
11n (20MHz): MCS0-7, up to 144Mbps
11g: 6, 9, 12, 24, 36, 48,54Mbps
11b: 1, 2, 5.5, 11Mbps
11ac(80Mhz): MSC0-9 , up to 866Mbps
Wireless Security
WEP
WPA-PSK
WPA2-PSK
WPA-Radius
802.1x
Software
Web Base Management
Setup Wizard
WAN
-
Static IP
-
Dynamic IP
-
PPPoE
-
PPTP
-
L2TP
-
Cloned MAC Address
Guess Mode
-
Cloned MAC Address
Disable SSID
-
Cloned MAC Address
Wireless SiteSurvey
-
Cloned MAC Address
Tx Output Power Adjustment, WMM
-
Cloned MAC Address
Wireless Mode (Each radio can work independently )
