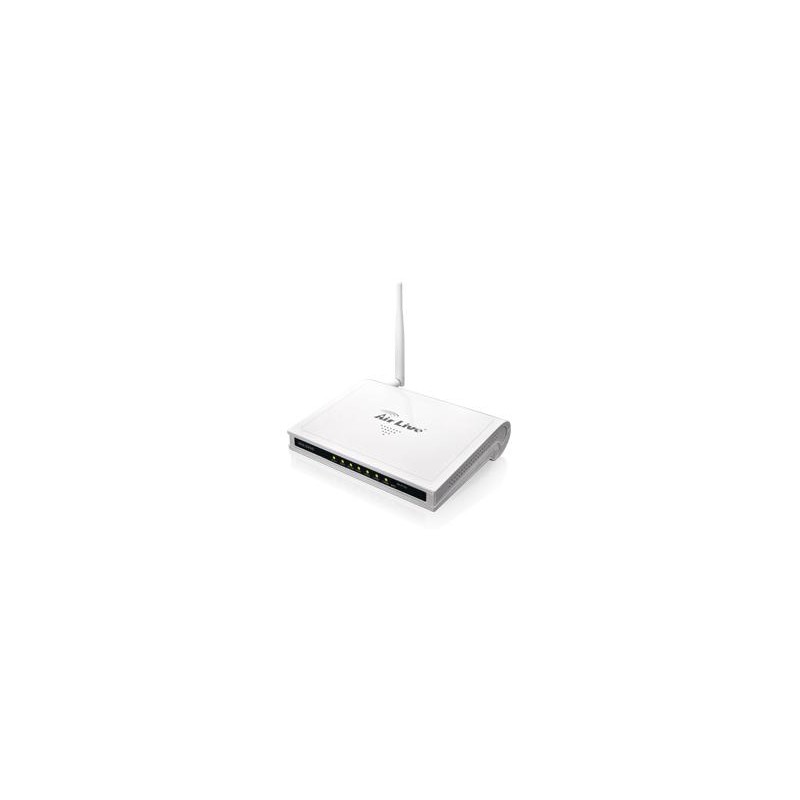

WN-220R Router 150Mbps b/g/n Airlive

Router Wi-Fi 150Mbps AirLive WN-220R

Airlive WN-220R is the heart of your home or office network.
You can share an internet connection at high speed with simplicity, flexibility and security.
The WN-220R is a router in standard 802.11b / g / n and data transfer rates up to 150Mbps.
The four Ethernet ports on the rear allow connection of network devices via LAN cable as well as wirelessly.
The router supports various ways of connecting to the provider of internet services such as static IP, dynamic IP (DHCP) or PPPoE. The package includes the CD which contains the wizard for easy installation and configuration.

Enjoy your wireless Router AirLive

The wireless connection up to 150Mbps enables the use of various applications.
It works with X-Box 360, online games, IPTV video streaming.

Install your cameras with WN-220R

Airlive WN-220R fully meets the high bandwidth requirements needed to HD or VGA cameras.

Support Tx Power Saving, Rx Power Saving and CPU Offload

Usually traditional network devices transmit 100% of their power, disregarding the user's actual environmental conditions. In fact this amount of energy is rarely needed. AirLive, to remedy the problem, aiming notably energy savings, automaticamene adjusts the power according to the user's distance, data traffic, the link status without any loss of performance.

Easy configuration with CD easy setup

Thanks to the CD inside the package is easy to configure the router following the instructions that appear on the screen. Through the wizard you can set for example: the network name (SSID), the security key (WEP, WPA, WPA2, etc.), The WAN settings, etc.

Specifications:

Hardware	Ethernet WAN - RJ-45 port, 10/100Mbps, auto-MDI/MDIX Ethernet LAN - RJ-45 port, 10/100Mbps, auto-MDI/MDIX WPS Button - For WPS connection Reset Button - Reset router setting to factory default LED Indication - Status / WAN / LAN1 ~ LAN4/ Wireless Power Jack - DC Power Jack, powered via external DC 5V/1A switching power adapter Output Power - 11n: 14±1.5dBm, 11g: 14±1.5dBm, 11b:17±1.5dBm
Wireless LAN (WiFi)	Standard - IEEE 802.11b/g/n (1x1) compliance SSID - SSID broadcast or in stealth mode Channel - Auto-selection, manually Security - WEP, WPA, WPA-PSK, WPA2, WPA2-PSK WPS - WPS (Wi-Fi Protected Setup) WMM - WMM (Wi-Fi Multimedia) Detachable R-SMA Antenna
Functionality	Ethernet WAN - PPPoE, DHCP client, Static IP WAN Connection - Auto-reconnect, dial-on-demand, manually One-to-Many NAT - Virtual server, special application, DMZ NAT Session - Support NAT session: 10000 SPI Firewall - IP/Service filter, URL blocking, MAC Control DoS Protection - DoS (Deny of Service) detection and protection Routing Protocol - Static route, dynamic route (RIP v1/v2) Management - SNMP, UPnP IGD, syslog, DDNS Administration - Web-based UI, remote login, backup/restore setting Performance - NAT up to 90Mbps and Wireless up to70Mbps PPTP/IPSec VPN Pass-Through
Environment & Certification	Package Information - WN-220R, DC 5V/1A power adapter, Quick Installation Guide Operation Temp. - Temp.: 0 - 40°C (32 -104°F), Humidity 10%~90% non-condensing *Lab Testing: -5 ~ 45°C (23 ~ 113°F) Storage Temp. - Temp.: -10~70°C, Humidity: 0~95% noncondensing EMI Certification - CE/FCC compliance RoHS - RoHS compliance
