Outdoor Access Point / Client

N2 Alfa Network

Security policy by express courier, order processing is immediate
We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
Are you a reseller or an installer? Contact us to access the reserved conditions

Access Point / CPE
Alfa Network N2
2,4GHz 2x2 MiMo 802.11n

Integrated antenna 12 dBi

Adjustable output power up to 1000mW

It is a device to be capable of achieving external point-to-point and high-distance point-to-multipoint connections.
Compatible with standard 802.11b/g/n.

There are also on-board 2 Ethernet ports.
Install on the pole outside and draws power directly from the Ethernet network cable (P.O.E included in the package), you need to bring up the N2 just the standard network cable and connect it to the standard RJ45 port.

modi operativi N2 Alfa Network

Specifications:

Model	N2
CPU	Atheros AR7240
Flash	8MB
RAM	32 MB
Interface	2 x RJ45 & 1x Reset
Antenna	Integrated 12dBi antenna
Output Power (dBm)	802.11b	1Mbps	29 ± 1.5	802.11g	6Mbps	29 ± 1.5
		2.2Mbps	29 ± 1.5		24Mbps	29 ± 1.5
		5Mbps	29 ± 1.5		36Mbps	29 ± 1.5
		11Mbps	29 ± 1.5		54Mbps	29 ± 1.5
	802.11n	MCS0	29 ± 1.5
		MCS3	29 ± 1.5
		MCS6	29 ± 1.5
		MCS9	29 ± 1.5
		MCS12	29 ± 1.5
		MCS15	29 ± 1.5
Sensitivity (dB)	802.11b	1Mbps	-95	802.11g	6Mbps	-90
		2.2Mbps	-94		24Mbps	-82
		5Mbps	-92		36Mbps	-80
		11Mbps	-90		54Mbps	-75
	802.11n	MCS0	-91
		MCS3	-83
		MCS6	-74
		MCS9	-89
		MCS12	-80
		MCS15	-72

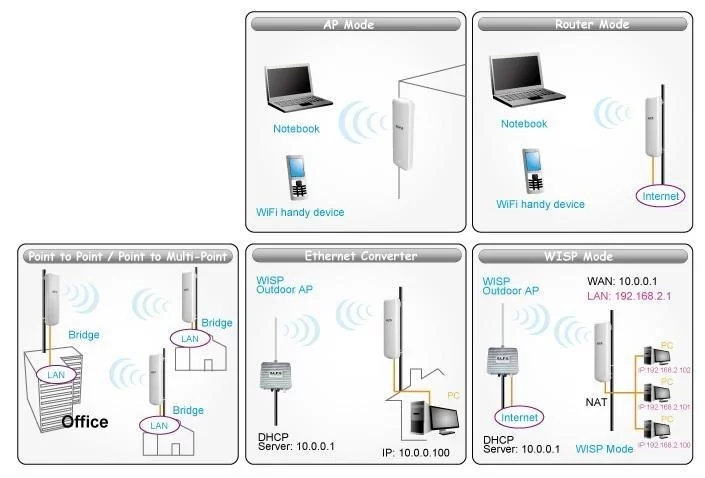

Operation Mode	AP Client WISP WDS Bridge
Software	Site Survey Bandwidth Control SNMP v1/v2 support adjustable output power Distance Adjustment Radius (802.1x)
Mounting	Pole Mount ( Standard) Adjust Angle Mount (Option)
Size	27.5 X 9.3 X 4.5 (cm)
Temperature	Operating: -30 ~ 75℃ Storage: -40 ~ 80℃
Humidity	Operating: 5 ~ 95%
PoE Required	12V~24V * depends on cable length *
