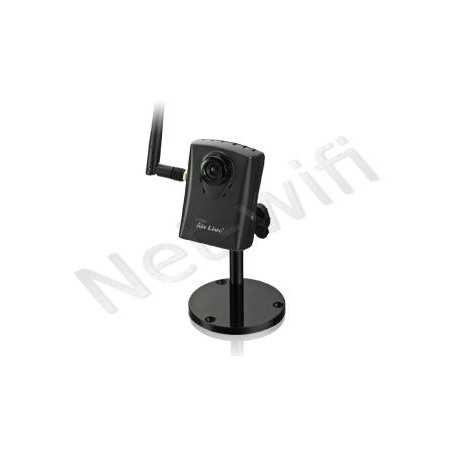

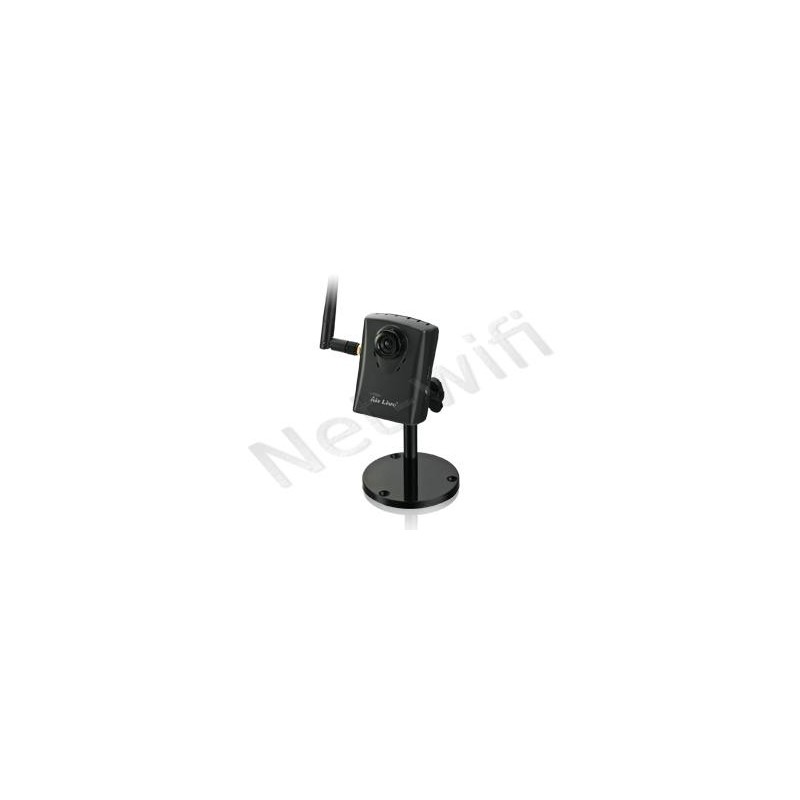

WN-200HD 2 MegaPixel wireless IP Camera Airlive

WN-200HD
IP Camera 2.0 Mega Pixel Wireless 150Mbps

Still couldn't find a way to watch your children or the elders when you are in busy or on duty? Or just need an easy solution for monitoring your office, store or garage? AirLive WN-200HD, with the Tiny-Cube size and wireless 802.11n network technology, it moves the “Surveillance” from a complex task to a Simply “Plug and Watch” job.

High Quality 2.0 MegaPixel Image

WN-200HD equips a 2.0 MegaPixel sensor for capturing high quality video stream. With this sensor, WN-200HD is capable to capture images up to 1600 x 1200 pixels resolution. One of the most compelling advantages of MegaPixel surveillance systems is the ability to capture more details in a frame and at the same time not missing any finer details that are useful for license plate identification and human recognition.



Full Feature 150Mbps Wireless N Camera

AirLive Wireless Internet IP Camera is designed for Home and Enterprise users to enjoy the security and home networking entertainment advantages. It is simple to use with plug-n-play installation and wireless operation so you can install the camera anywhere.

Easy to install

WN-200HD is a tiny cube, light but full featured IP camera. It can be easily mounted on the wall or ceiling and decrease the burden of cabling with its network function. Moreover, by using its build-in wireless network function, user can even omit the cabling issue in the initial planning stage. Intelligent IP Installer, the assistant utility for searching WN-200HD in the network, can speed up the installation with only few clicks on the computer.

Windows-based and Web-based Monitoring Utility

The Web-Based configuration allows users to make the configuration including the image monitoring, recording images to a hard drive,snapshots and many others via Intranet/or Internet in real time!

The camera supports FTP, TCP/IP, SMTP, HTTP and many other Internet related protocols for remote surveillance. Intelligent motion detection up to 10 zones enables optimal performance of video detection by capturing images and sending those images for e-mail notification. With high sensitivity CMOS sensor, the WN-200HDconstantly delivers superior image detail in most environments.

H.264, MPEG4 and Motion JPEG

H.264 is a high performing video compression standard that boasts a much higher compression ratio than MJPEG or MPEG-4, drastically reducing file sizes and conserving valuable network bandwidth and storage space. With up to 90% reduction in file size, a 1 MB image can be drastically reduced to as low as 10KB using H.264. WN-200HD adopts this technology, and provides a more economical way to utilize your storage space. It is an important function to make continuous video recording possible.

Support 2 ways audio

The WN-200HD Internet Camera takes video surveillance to another level by using 2-ways audio. By connecting a powered speaker to the camera, you can now remotely talk to anyone at your camera site. And it also comes on the build-in microphone, so you can also hear the voice via the camera.

View from Mobile Phone

WN-200HDcan delivers its video to the mobile phone via 3GPP function. Via this function, user can monitor his property through the 3G or 2.5G mobile network remotely. This is very useful when you are on your journey or business trip. What's more, user can also use the build-in browser of his smart phone, like the Safari of iPhone, for monitoring. By the Wi-Fi connection, WN-200HD and your mobile phone can play the role as the Baby Monitor.

Specifications:

Model	WN-200HD
Description	2.0 Mega Pixel Passive PoE IPCamera
Image Device	2 Mega-Pixel image sensor
Effective Pixels	1600 x 1200 pixels
Sensitivity	1.0V/lux-sec
Signal to Noise	42.3dB
Lens	4.3mm
Video
Video Encoder	H.264, MPEG4 and Motion JPEG
Video Profile	9 Profiles Simultaneously
Frame Rate	Up to 30fps @ 1280x720 mode (HD mode) Up to 15fps @ 1600x1200 mode (2 Mega-pixel mode)
Image Setting	AE, AWB Noise reduction Color, brightness, sharpness, contrast Mirror/Flip Privacy Masks Text, time and date overlay
Streaming	Simultaneously Multi-Profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (H.264) ROI
Audio
Audio Encoder	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Audio Streaming	One-way or two-way
Microphone	Built-in microphone
Audio Output	Adjustable audio output gain
Network
Supported Protocols	IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP,NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour,UPnP, RTSP, RTP, RTCP, IGMP, PPPoE,3GPP, Samba, ICMP
Security	Password protection, IP address filtering,HTTPS encrypted data transmission, user access log.
Users	20 simultaneous unicast users
Ethernet	10/100M auto negotiation
System Integration
Application Programming Interface	ONVIF Open API for software integration SDK
Alarm Triggers	Intelligent video motion detection
Motion Detection	10-zone video motion detection with included or excluded options
Alarm Events	File upload via FTP or email Notification via email, HTTP, and TCP Audio alerting output
Video Buffer	Pre- and post- alarm buffering
General
RAM	128MB
ROM	16MB
Power Supply	12V DC external power adapter
Supported Protocols	3W
Connectors	RJ-45 10BaseT/100BaseTX DC power jack Audio out Factory default reset SD card
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	20% ~ 80% (non-condensing)
Dimension	HxWxD:74.5 x 52.6 x 35 (mm)
Viewing System
OS	Windows® XP, Vista, 7
Browser	IE 6.0 or later, Firefox 2.0 or later, Safari
Cell Phone	With 3GPP player
Video Player	VLC, Quick Time, Real Player, Core Player
