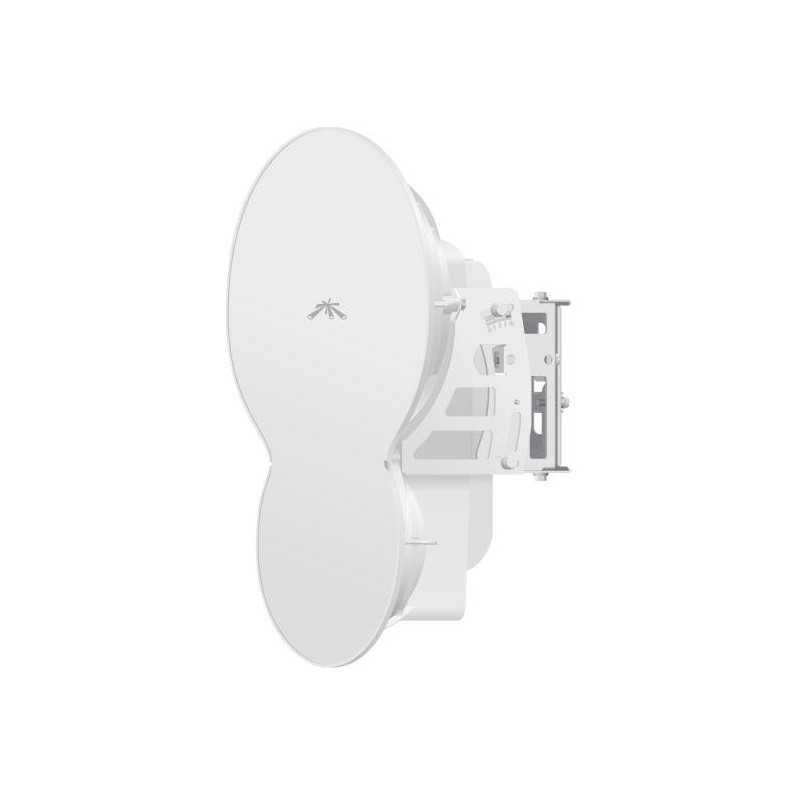

AirFiber Ubiquiti 24GHz Full duplex 1.4Gbps

Revolutionary Wireless Technology
A truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Efficient by Design
Every detail of airFiber was designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created airFiber to deliver superior throughput with efficiency. airFiber was purpose-built to create a high performance backhaul.

Plug and Play Deployment
Based on Ubiquiti’s innovative and intuitive airOS®, the airFiber Configuration Interface enables quick deployment. With installation efficiency in mind, the mechanical design allows easy installation by one person. A two-person installation crew can effectively install and align an airFiber link.
To fine-tune the alignment, the received signal levels can be conveniently accessed via any of these methods:
• airFiber LED display
• airFiber Configuration Interface
• Audio tone feature

Designed for Freedom
The airFiber (AF24) operates in worldwide, license-free, 24 or 5 GHz frequencies.

Built for Speed and Range
airFiber delivers gigabit performance at 1.2+ Gbps for airFiber AF-5/AF-5U, 1.4+ Gbps for airFiber AF-24, and 2 Gbps for airFiber AF-24HD. To put this in perspective, airFiber can transmit a 100 MB file in less than a second. Rivaling common broadband providers, airFiber download speed is up to 100x faster. With speed and throughput surpassing conventional wired backhauls, airFiber prevails over expensive and labor-intensive wired infrastructures.

airFiber is built for long-range use: up to 13+ km for airFiber AF-24, up to 20+ km for airFiber AF-24HD, and up to 100+ km for airFiber AF-5/AF-5U, which launches the innovative xtreme Range Technology (xRT™) feature.
airFiber backhauls do not share the security risks associated with wired backhauls. The long distances of wired backhauls are vulnerable to copper theft, fiber optic damage, vandalism, and accidental breakage. With airFiber, only the installation points of the airFiber links need to be secured.



Innovative Proprietary Modem Technology
Ubiquiti’s innovative proprietary modem technology was purpose-built to address the specific challenges of outdoor, PtP (Point-to-Point) bridging and high-performance network backhauls. Every aspect of the radio has been carefully simulated and designed to optimize range, speed, and latency performance in the harshest RF noise environments.

Synchronous Data Transmission and Reception
Conventional wireless standards impose a latency by having to receive a packet before a packet is transmitted. airFiber can transmit data synchronously without any wait time. airFiber features traditional TDD and FDD modes of operation in addition to the proprietary Hybrid Division Duplexing (HDD) mode, which provides a breakthrough in range and spectral efficiency performance. Based on the ranging algorithm built into the air protocol, the airFiber radios use patent-pending HDD technology to calculate the propagation delay and know when each radio can transmit and receive, so they send packets in precise synchronization. Packet transmission latency is virtually eliminated.

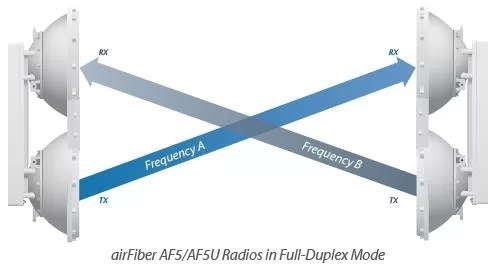

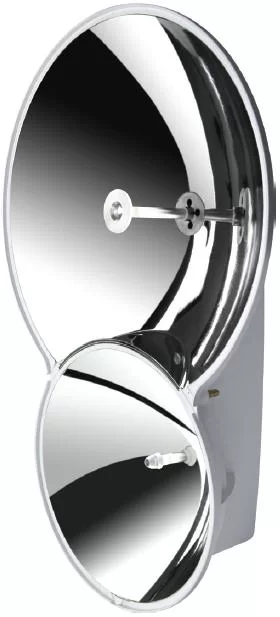

Innovative Dual-Antenna Architecture
airFiber features a dual-independent, 2x2 MIMO, high-gain reflector antenna system. Separate yet integrated transmit ( TX) and receive (RX) antennas help extend link budgets by eliminating the extra RF losses caused by the switches or duplexers required in systems with common TX/RX antennas.
Each AirFiber radio has two complete antenna systems and an unique sound and robust "monocoque" element that houses them. Monocoque means that the "outer skin" supports AirFiber hardware structural loading. Thanks to the one-piece, injection molded, the AirFiber is light in weight and value to its list of advantages.



Network management

The AirFiber supports a number of features to help in the management of the network:
• Management Options and network bandwidth;
• SNMP support;
• Status information of airFiber obtainable locally or remotely.

Performance on 24GHz
Radio systems using millimeter wave RF suffer losses (Radio Frequency) in the filters and the switches. The research and development team ubiquiti has eliminated these losses with the antenna system separate so that the link budget appears robust.

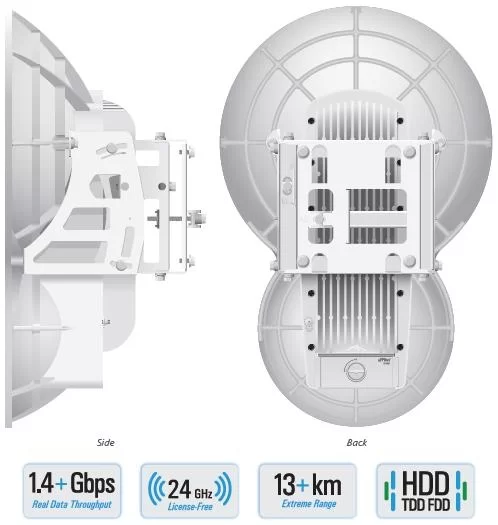

Solid mechanical assembly
An independent laboratory has tested the airFiber's mechanical assembly to meet stringent US military standards (MIL-STD-810G) which defines a series of tests in severe environmental conditions. The AirFiber also passed the vibration test IEC 60068-2-6 one IEC standard (International Electrotechnical Commission).


 Specifications:
