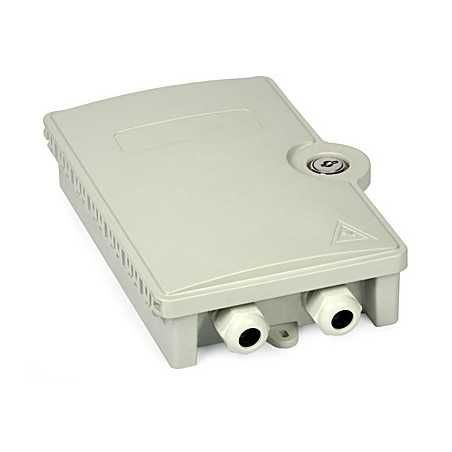

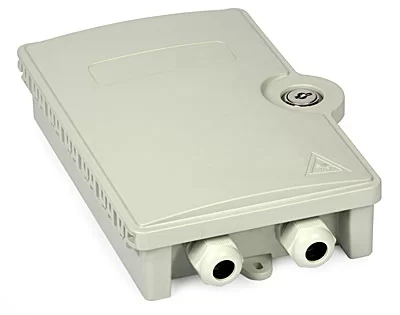

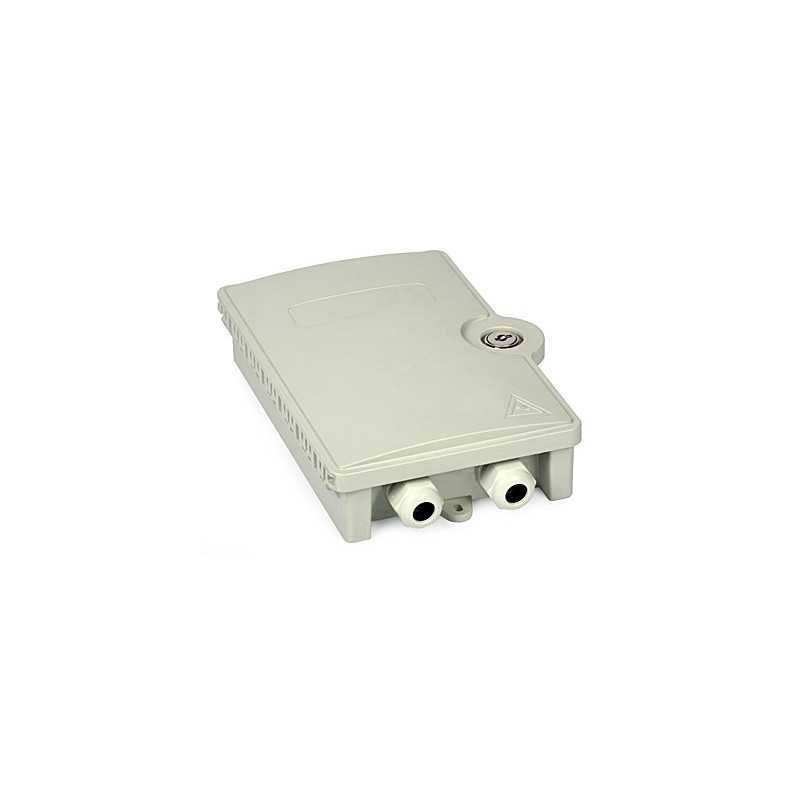

Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door
      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door

      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door

      Review (0)
      €19.70
      Tax Included
      Out-of-Stock

      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door

      For the distribution up to 4 fiber cables

      Quantity :
      Write your review
      • Security policySecurity policy by express courier, order processing is immediate
      • We accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collectionWe accept: Paypal, Bank Transfer, Klarna, Credit Card, Cash on collection
      • Are you a reseller or an installer?Are you a reseller or an installer? Contact us to access the reserved conditions

      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted) with lockable door

      Fiber Optic FTTH Distribution Box ULTIMODE TB-04B (wall-mounted)

      • Wall-mounted fiber optic distribution box for indoor applications (IP65)
      • For connecting up to 4 LC or 2 SC/FC connectors
      • The possibility of securing 4 splices
      • Place for a MICRO optical splitter
      • Lockable door
      • Ease of installation, operation and maintenance

      The wall-mounted fiber optic distribution box ULTIMODE TB-04B allows for easy organization of fiber optic cables (up to 4 fibers, depending on the installed adapters.) The holes inside the box are suitable for installation of SC simplex adapters (connecting up to 2 fibers with SC or FC connectors, or up to 4 fibers with LC connectors).


      The ULTIMODE distribution box (frame) allows for easy and quick installation of optical fibers. It also protects splices and a splitter. In the box there is a splice tray (for 4 splices) and the place for a MICRO optical splitter. Two PG cable bushes are designed for optical cables with external diameter of 7-12 mm. The lockable door protects the interior of the box against unauthorized access.


      The box is intended for wall mounting at the end of an optical line. It is used in internal fiber optic networks e.g. in apartment houses, office buildings, warehouses

      Specifications:

      NameULTIMODE TB-04B
      Maximum number of connectors4
      Compatible connectorsSC, FC - simplex
      Max number of splices4
      Max number of trays1
      Tray includedYes
      External cable diameter range [mm]9-12
      Dimensions [mm]210 x 155 x 55
